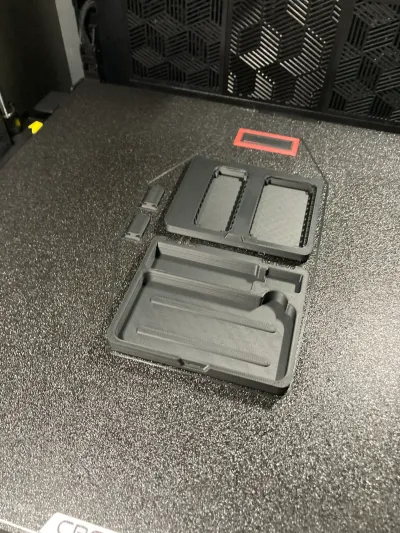

New and improved version of the travel case for SSD SanDisk Extreme (https://www.crealitycloud.com/it/model-detail/677713bc06c912fef1c959b9).

I've made a different hinges type that allow the cover to be completely opened at more then 180°.

When opened on a flat surface, the base and the cover can now touch completely the surface even if the thickness of the cover is less than the thickness of the base.

Have also been added a text in front of it.

Again very fast and easy to print!

The box contains:

1- SSD SanDisk Extreme

1- USB Key (most of the standard size)

1- USB-C TO USB-A adapter

1- Long USB Cable (suggested USB-C - USB-C)

2- medium length usb cable

--------------------

Printing with supports may increase the details of the fillets in the bottom.

The cover need to be printed with supports also from the model to print correctly the cable pocket.

The hinges can be printed in standing position if you wand more details, but it may cause adhesion problems because of the small surface.

In this last case, it may be better to use brim at least on the hinges, otherwise the models can be printed without brim.

It can be used a piece of filament to connect the base, and the cover to the hinges.

It is suggested to use a drilling tool Ø1.8mm to clean the holes of the model to put the filament easier, especially if you print with the supports also on the holes (like done in the printer settings)

NEW Case for SSD SanDisk Extreme + USB Key and accessories

0.12mm layer, 2 walls, 15% infill
