(Note: The original file names are in Turkish. "Kalem tutucu" translates to "Pencil Extender/Holder" and "vida" translates to "screw".)

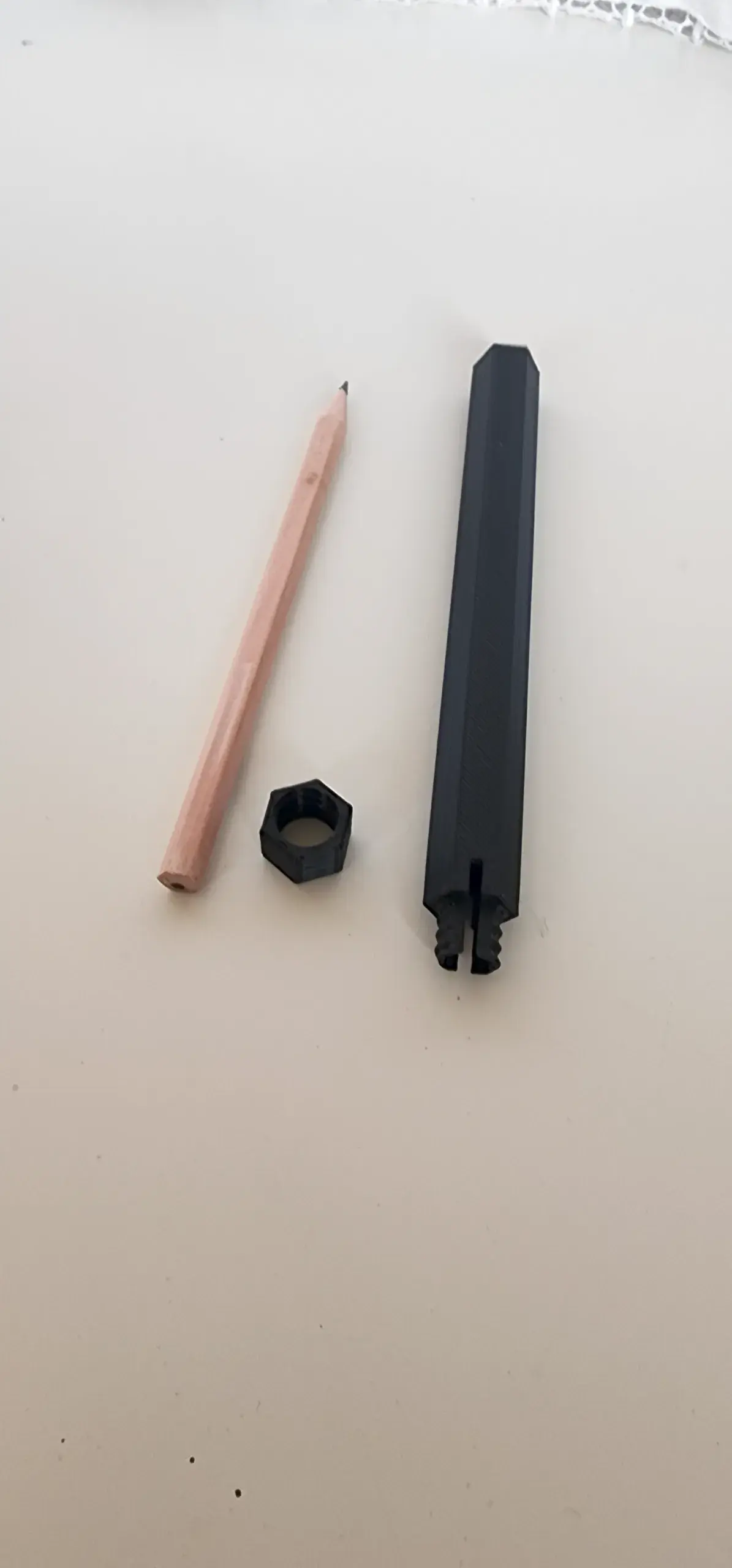

Don't throw away your short pencils! This functional, mechanical pencil extender features a threaded collet mechanism to securely grip your stubby pencils, allowing you to comfortably use them down to the very end.

⚡ Quick & Reliable Print:

This is a very fast print, taking approximately only 27 minutes! It's a perfect, practical tool for artists, students, or anyone who hates wasting pencils.

💡 Design Update (Stronger Build): After field-testing the initial prototype, I noticed that the angled/slanted gripping jaws could break under clamping pressure. I have completely redesigned this final version with straight, thickened walls. It is now incredibly sturdy, won't snap when tightened, and holds your pencils perfectly securely!

Multiple Tolerances Included:

Since every 3D printer has a different level of accuracy and calibration, I have provided the screw part ("vida") in three different tolerance clearances:

0.1 mm: For highly calibrated, precise printers (Tight fit).

0.15 mm: The standard medium fit.

0.2 mm: For older or less calibrated printers (Loose fit).

Print the main body ("Kalem tutucu") and choose the screw tolerance that works best for your machine!

File Formats:

I have included STL, 3MF, and STEP files so you can print it immediately or easily remix and adjust the dimensions.

Files Included:

Kalem tutucu.3mf

Kalem tutucu.STEP

Kalem tutucu.STL

Kalem tutucu vida 0.1 mm.STEP

Kalem tutucu vida 0.1 mm.STL

Kalem tutucu vida 0.15 mm.STEP

Kalem tutucu vida 0.15 mm.STL

Kalem tutucu vida 0.2 mm.STEP

Kalem tutucu vida 0.2 mm.STL

Recommended Print Settings:

Layer Height: 0.20 mm

Wall Loops: 2

Infill: 15% (Gyroid)

Supports: Yes (Type: Tree Auto / Style: Tree Strong / Support critical regions only)

Material: PLA

If you've enjoyed my work and would like to buy me a coffee to support my creative efforts, you can do so through the link below. Your generosity is greatly appreciated!

Buy Me a Coffee: https://www.buymeacoffee.com/ahmetutkuozkan

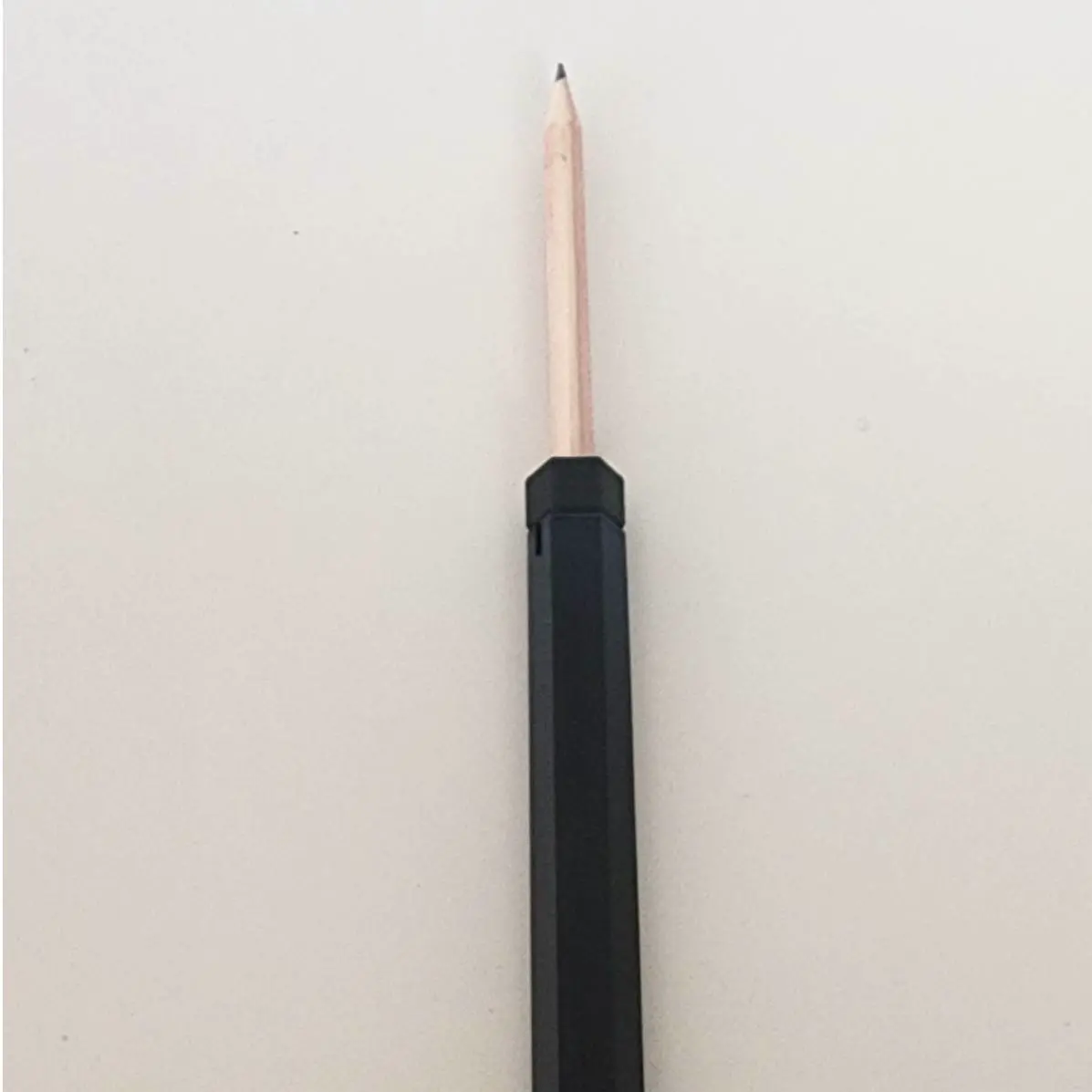

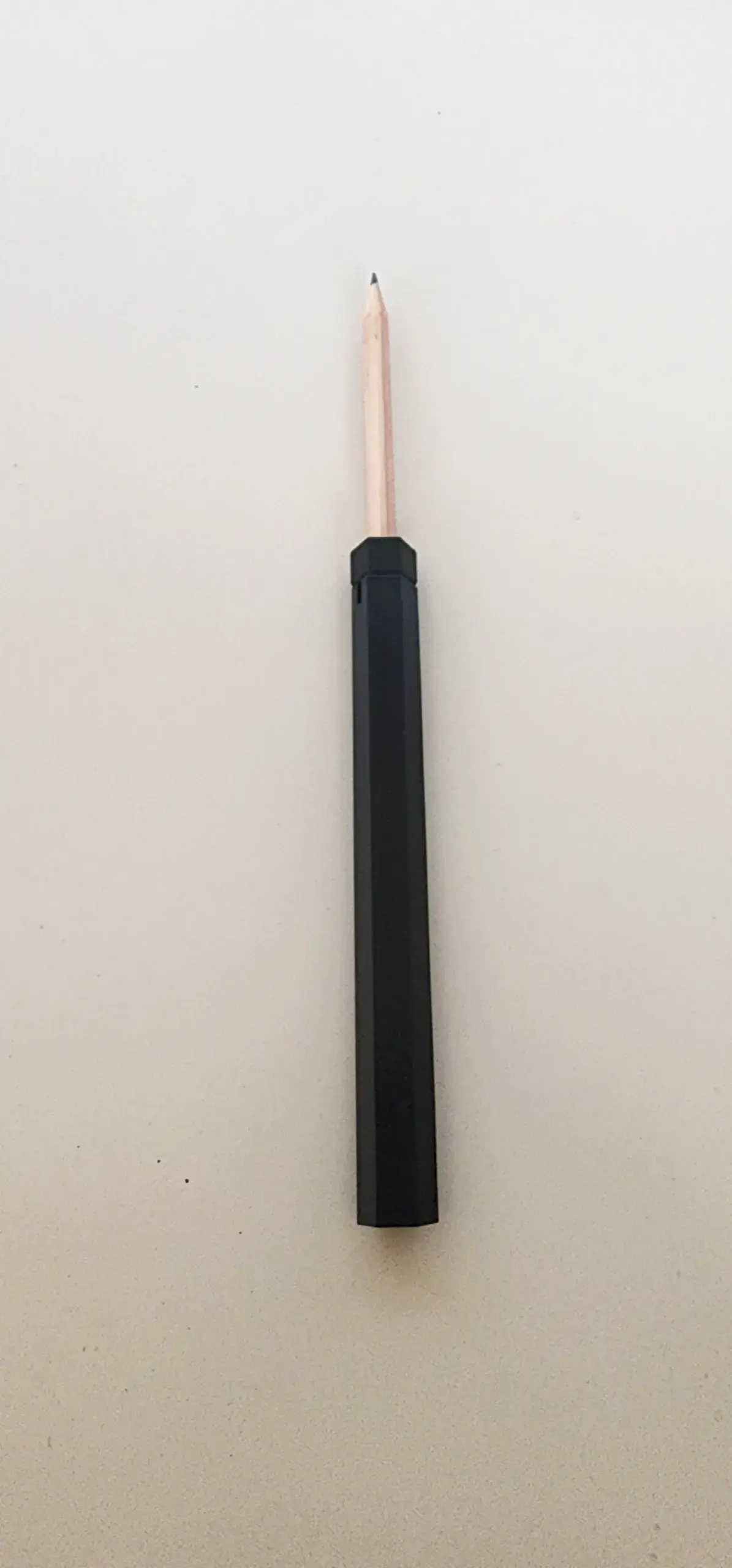

Adjustable Pencil Extender / Holder for Short Pencils

0.2mm layer, 2 walls, 15% infill
