The crazy cat rattle !

A fun little toy for a baby or young child!

⚠️ Please note: This is a 3D-printed object. Always check for sharp edges. If needed, smooth them out with a knife or a bit of sandpaper to make it safe and comfortable to touch. While it might be fine without post-processing, I strongly recommend doing it anyway. Only give it to your child if you believe it is safe and responsible to do so.

Also check out my youtube channel and support me by subscribing and possibly watching!

youtube.com/@ElektroTechNL?sub_confirmation=1

🛠️ Print Instructions:

Print the rattle balls first.

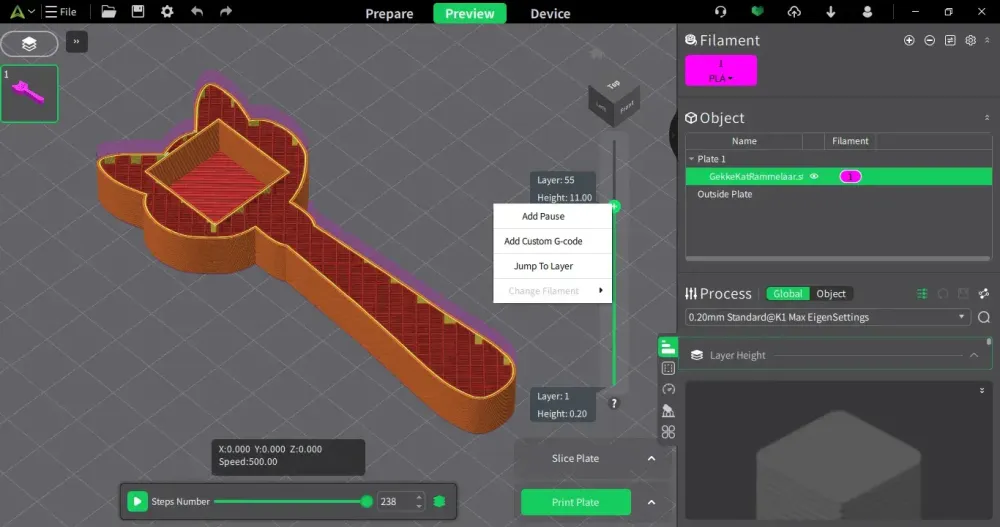

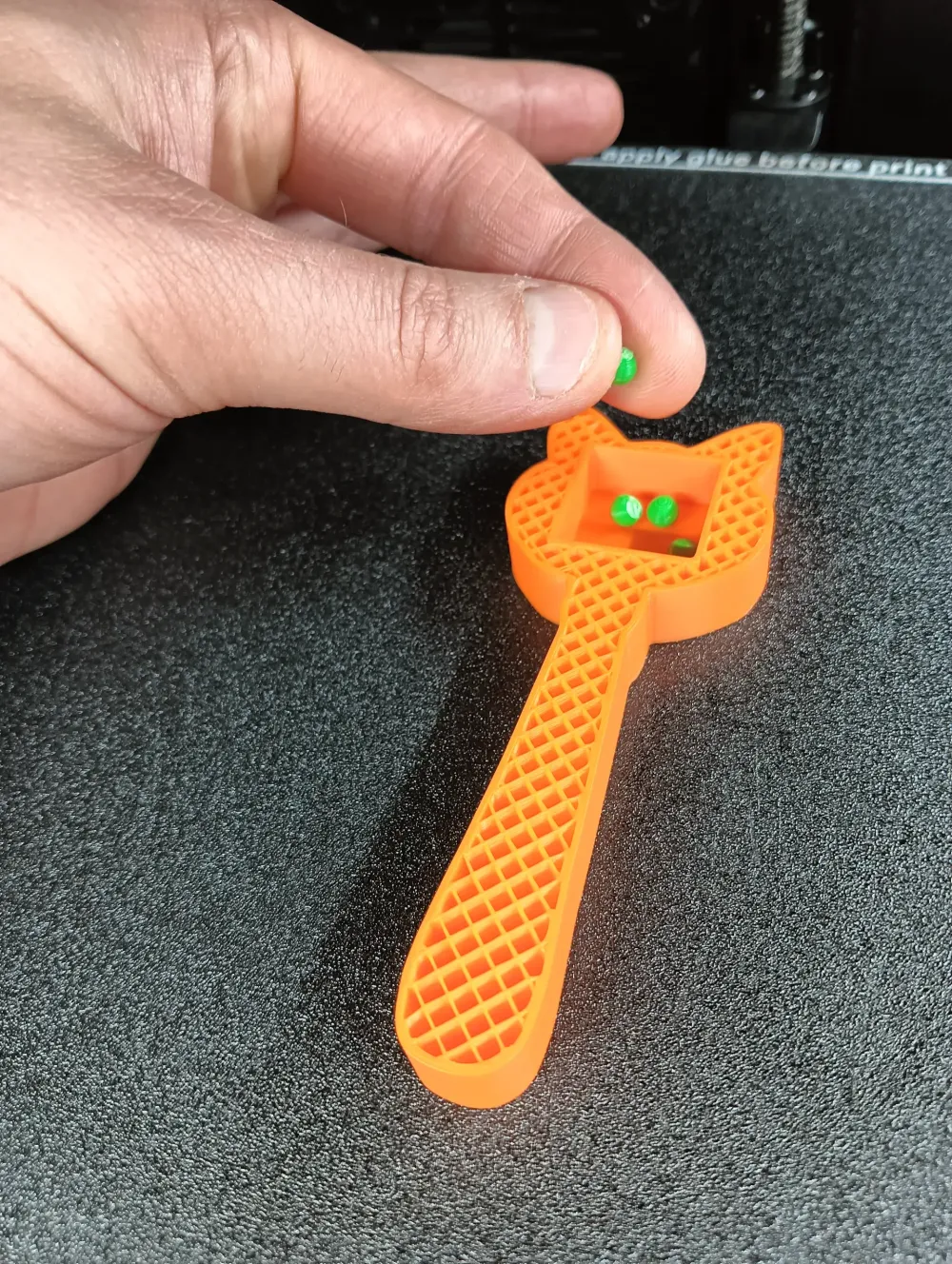

While printing the rattle, pause the print at layer 55 to insert the balls into the designated chamber. After placing them, resume the print.

I put 4 balls in it but you can do this according to your own preference.

⚙️ Print Settings:

Nozzle size: 0.4 mm

Layer height: 0.20 mm (standard profile)

Infill: 15% (or as desired)

Supports: Not required

Material: PLA

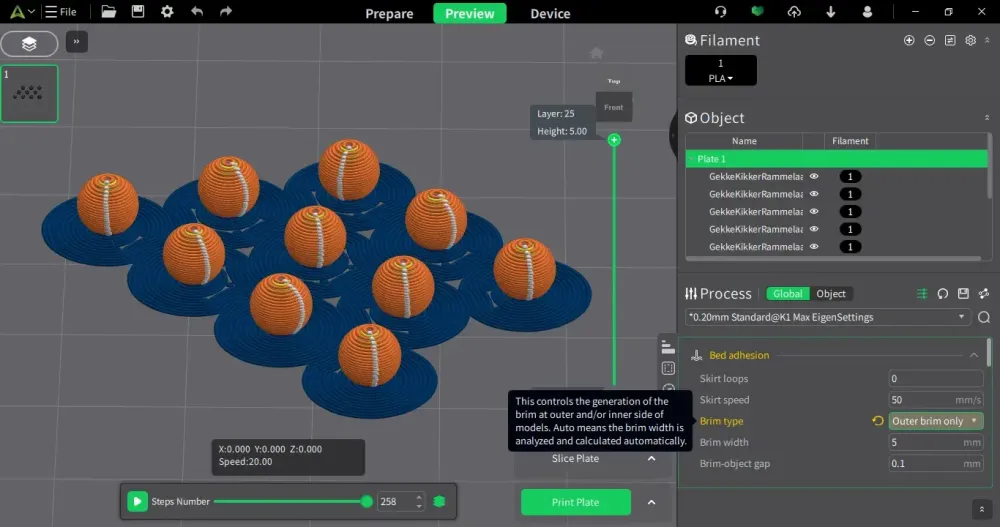

Brim: Use brim for the rattle balls only trim the brim off after printing.

🔔 Disclaimer: I am not responsible for any accidents or issues that may occur. Only use this toy under supervision and if you are confident it is safe.

The Crazy Cat Rattle !

0.2mm layer, 2 walls, 15% infill
