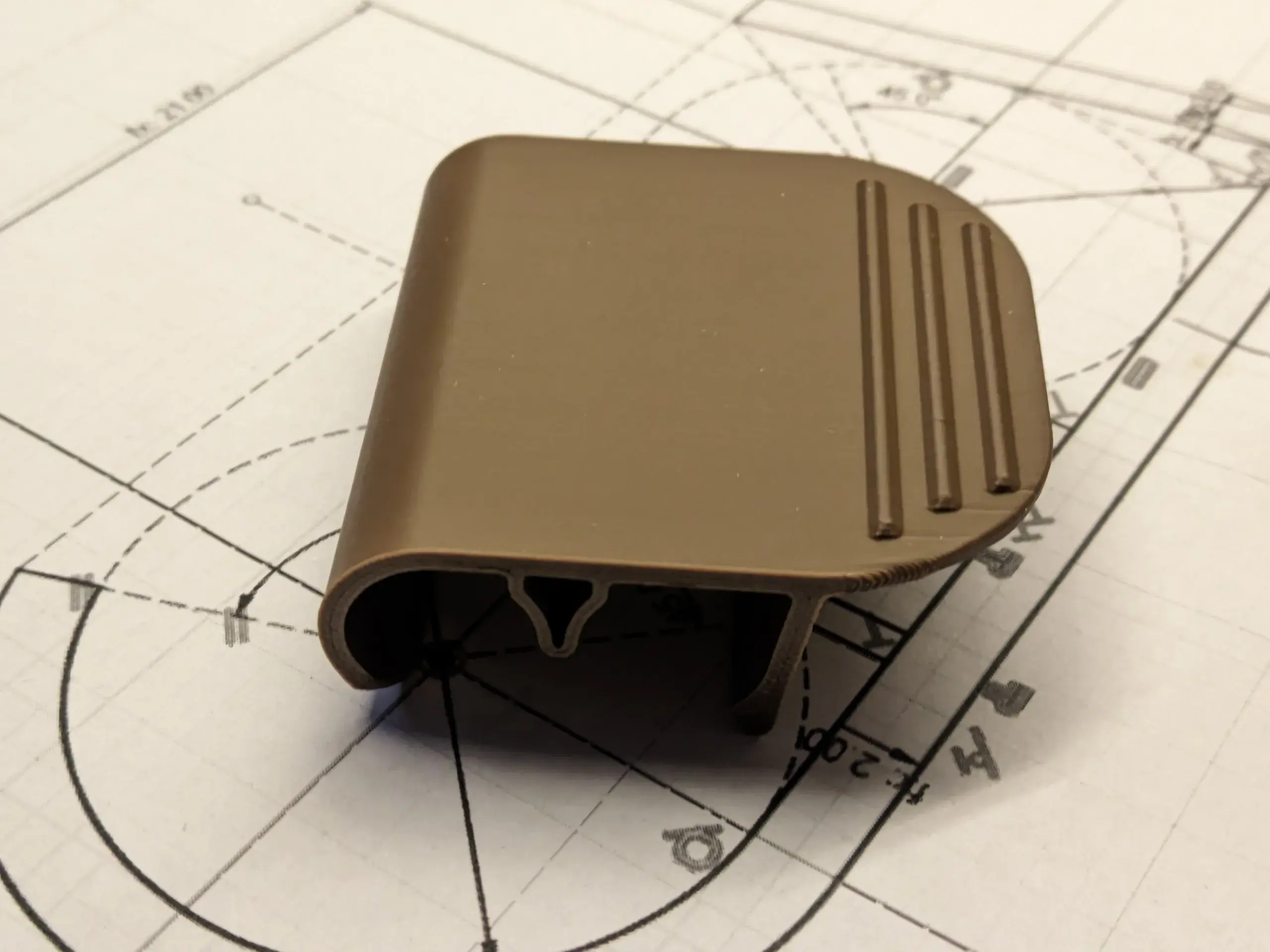

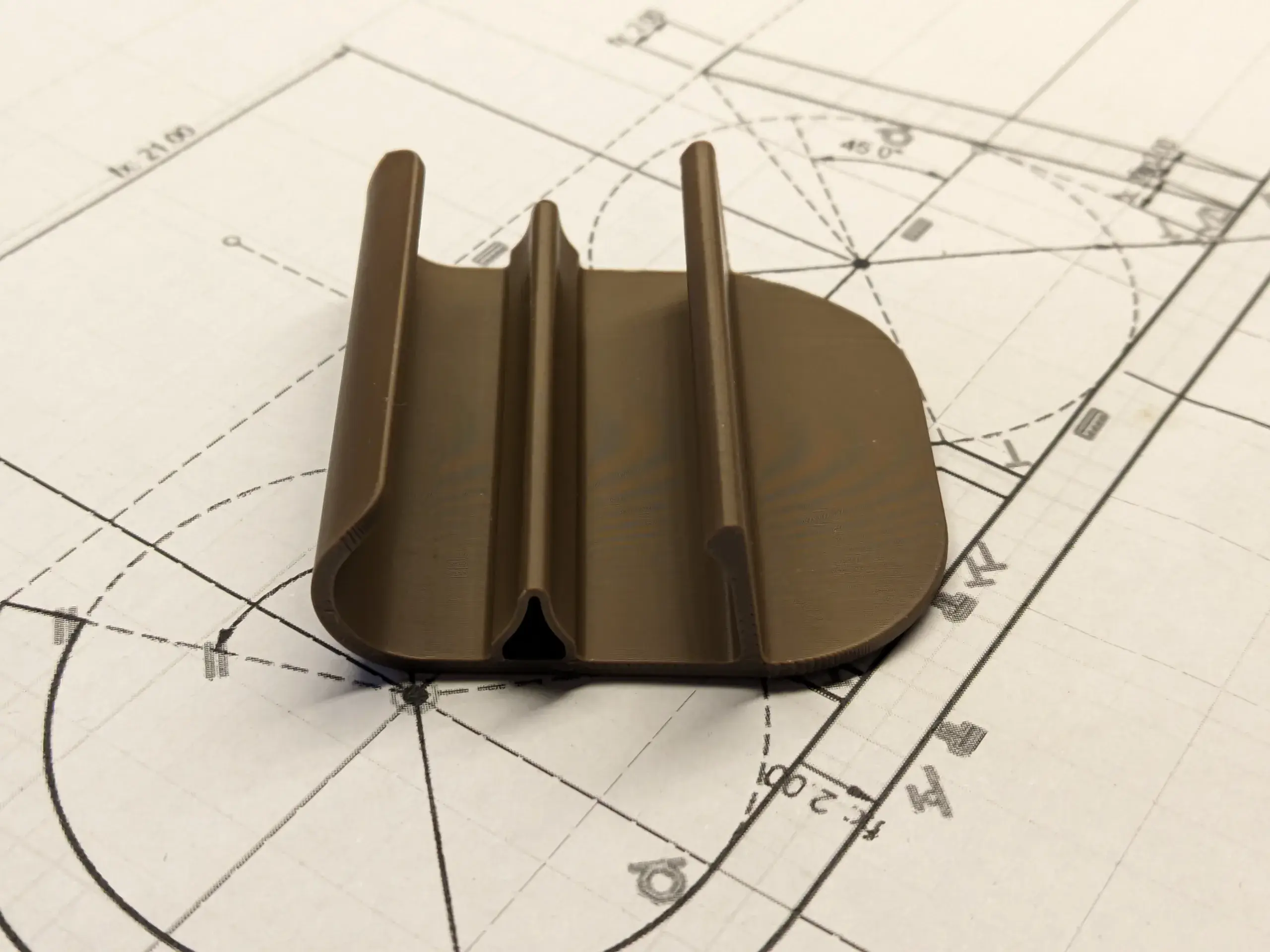

I'm excited to share a brand-new version of my drying rack clip, completely redesigned in Fusion 360.

While the original was very popular, it had one major issue: its dimensions were fixed. The only way to adapt it to different tube sizes was by scaling the model, which unfortunately reduced its thickness and strength.

To fix this, I've created a new, fully parametric model from the ground up. This means you can easily adjust it to fit any rack without compromising its durability. On top of that, I've added a few more improvements for a better overall user experience, like a stronger grip and a more reliable hold on the clothesline.

It's the ultimate solution for a universal problem.

You can easily input three parameters:

Pipe Diameter (mm)
The diameter of the pipes

Pipe Spacing (mm)
The minimum distance between the outer surfaces of the pipes

Clip Width (mm)
The width of the clip

No Fusion 360? No problem! You can customize this model online right here: https://**********.com/en/models/1781550-drying-rack-locking-clip-generator

Need a quick solution? For your convenience, I’ve also prepared ready-to-print files for the most popular drying rack dimensions. Just download and print!

Drying Rack Locking Clip Generator

From 16 mm to 10 mm

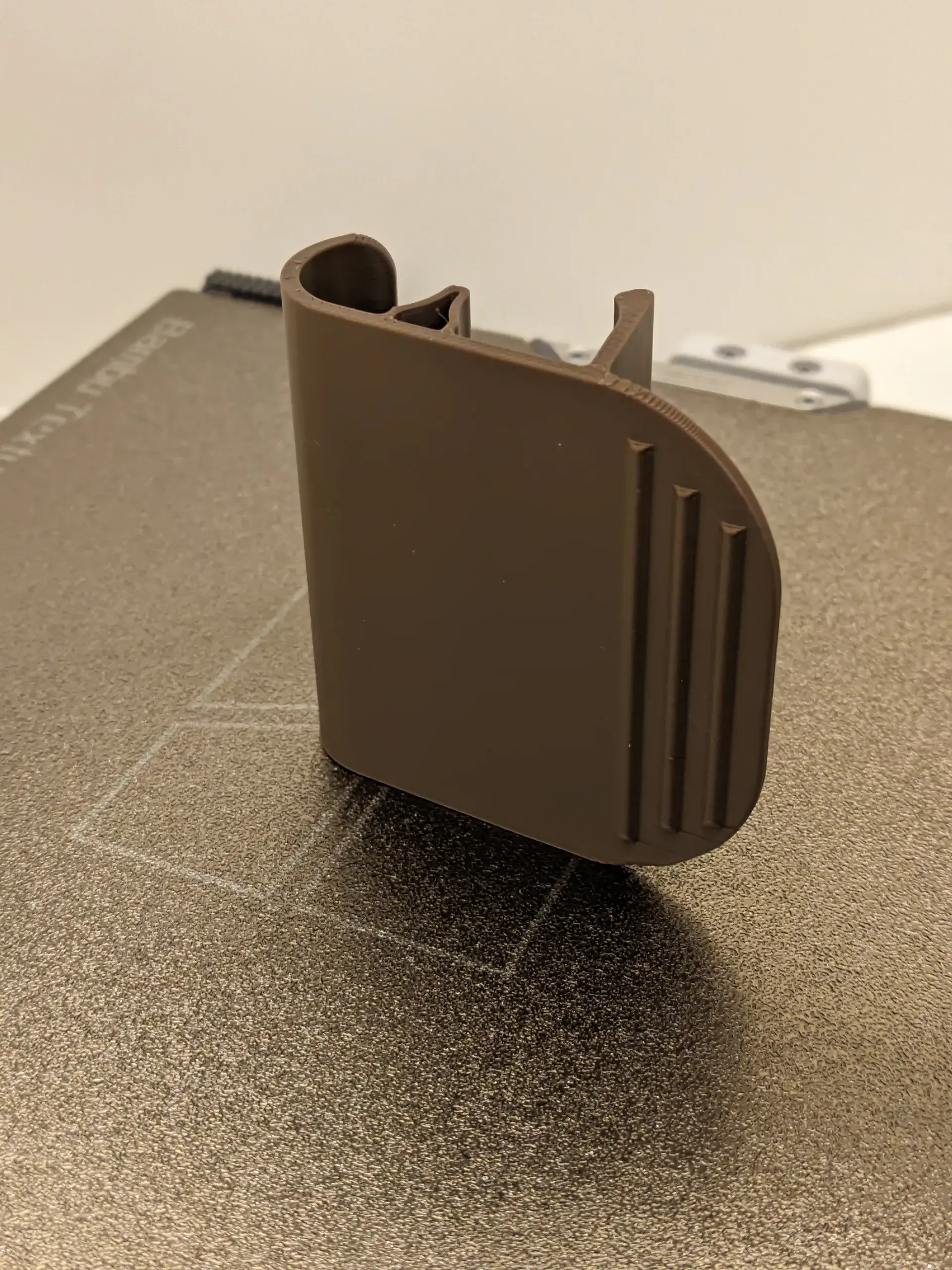

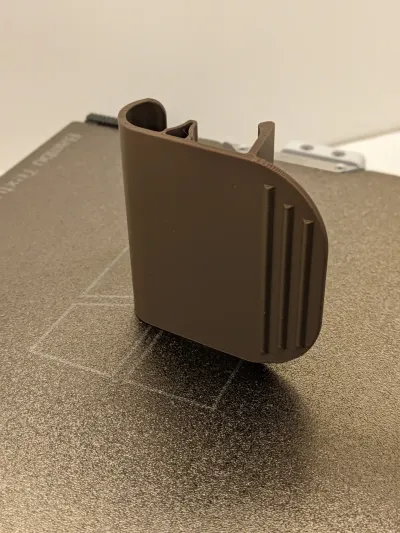

0.2mm layer, 2 walls, 15% infill

Original
