Design Concept

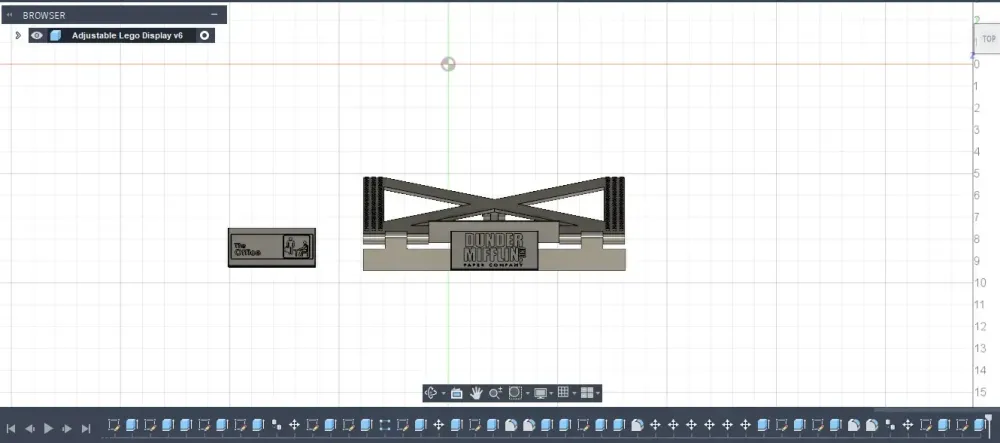

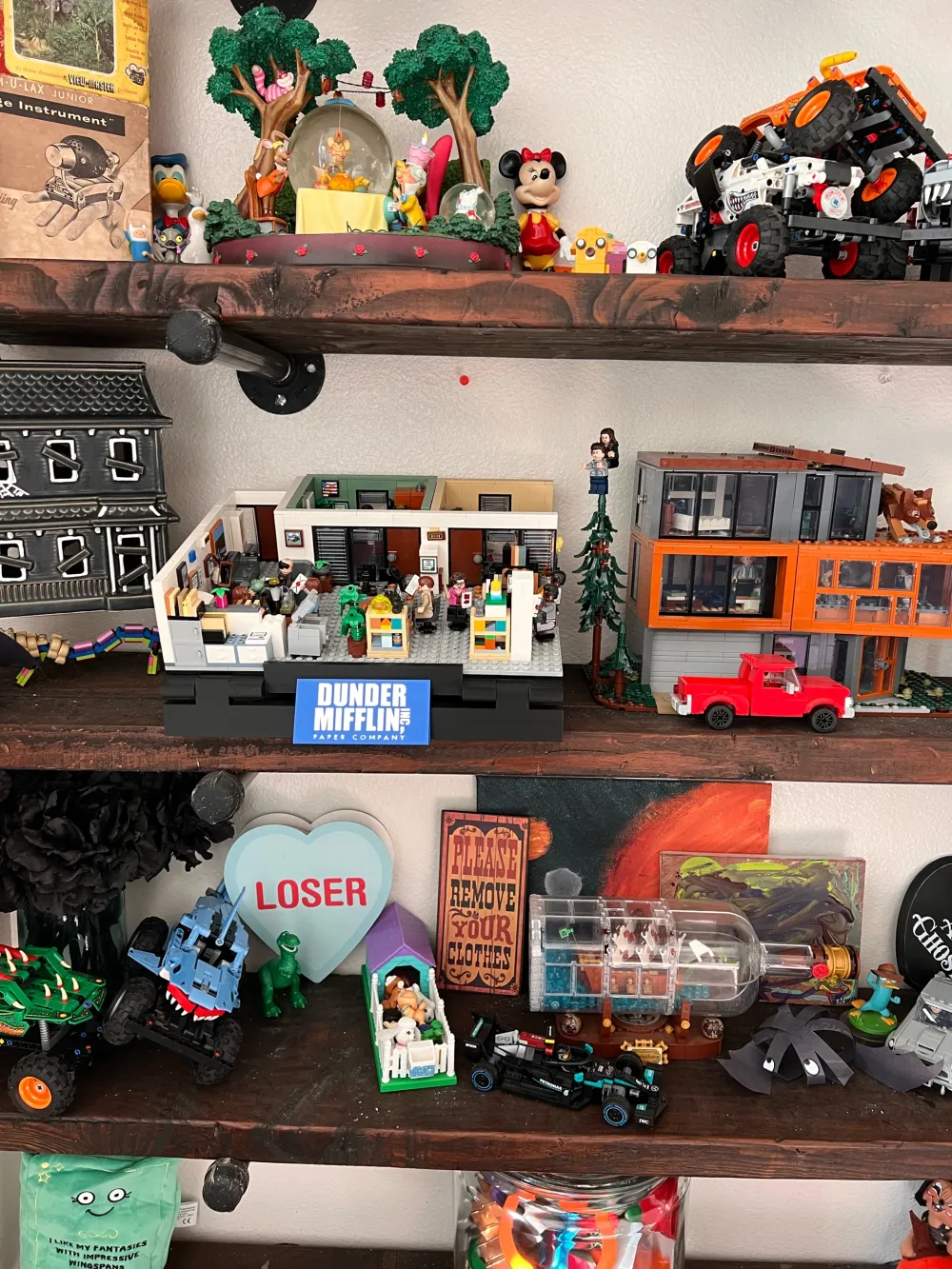

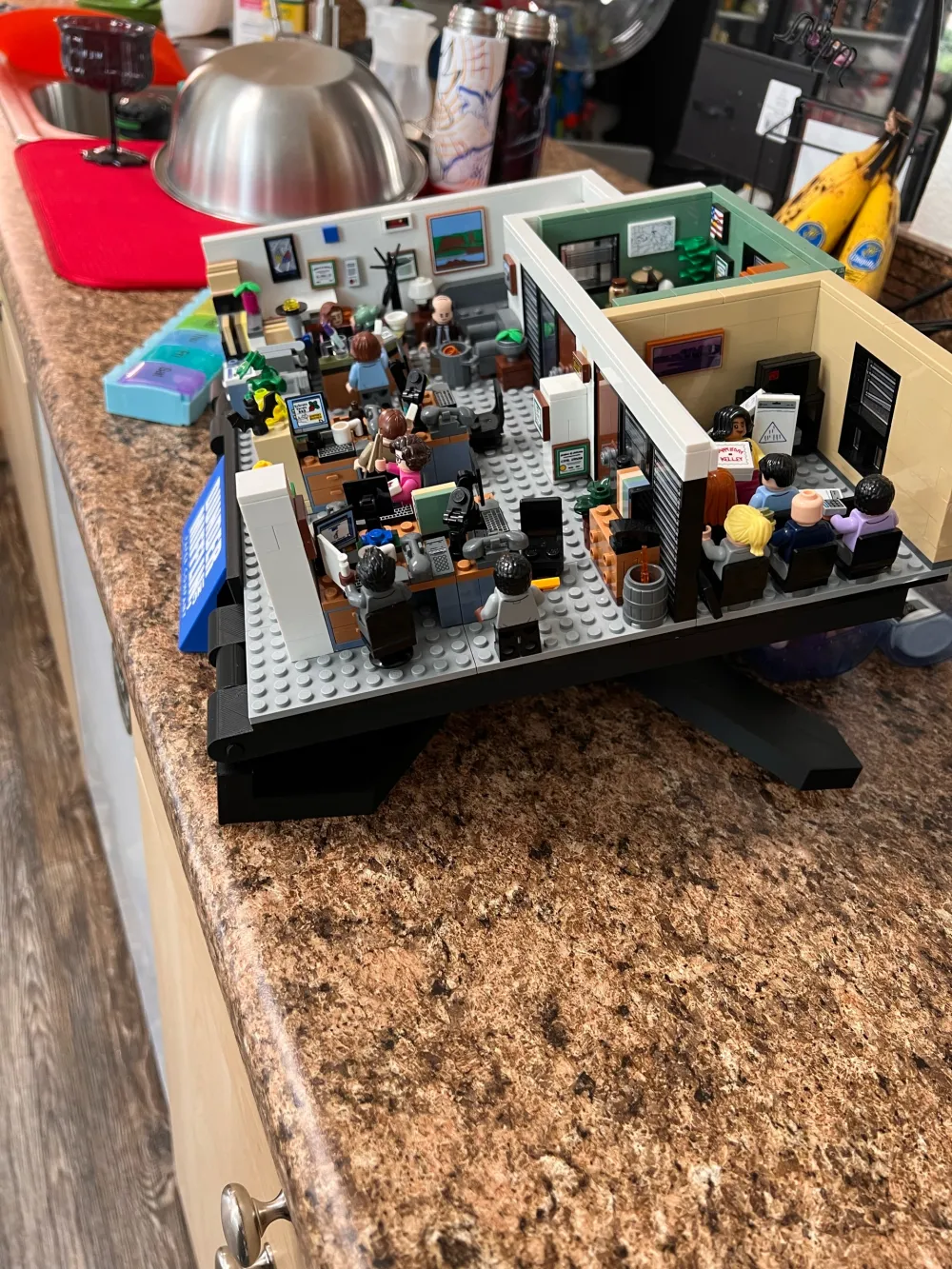

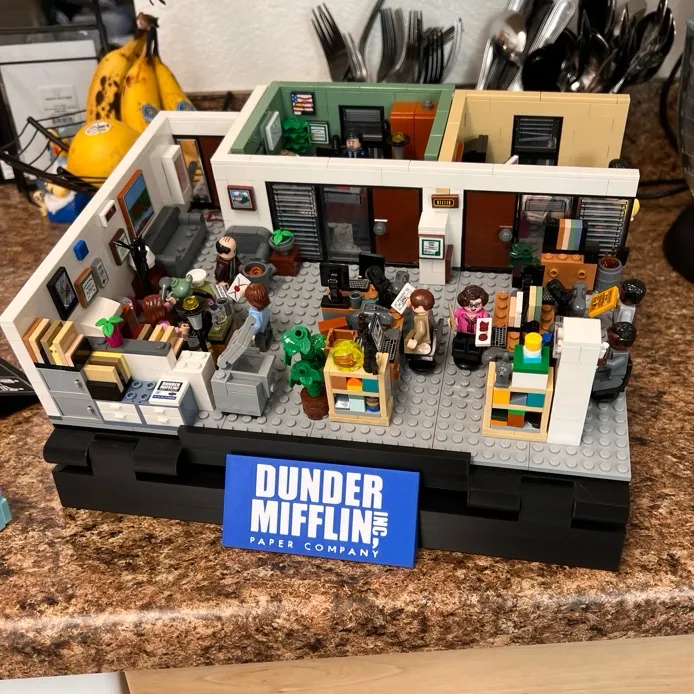

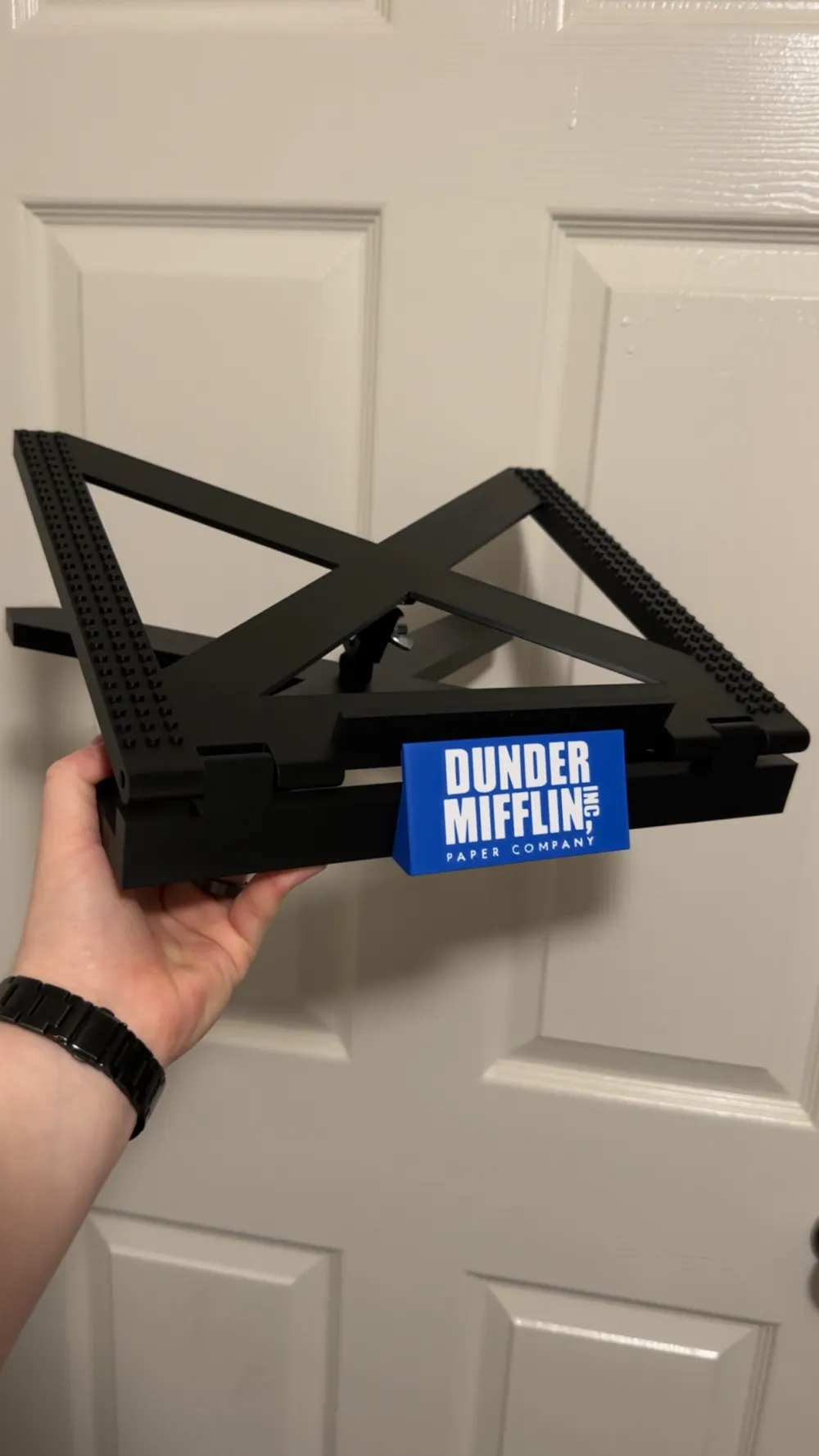

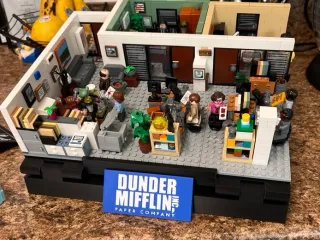

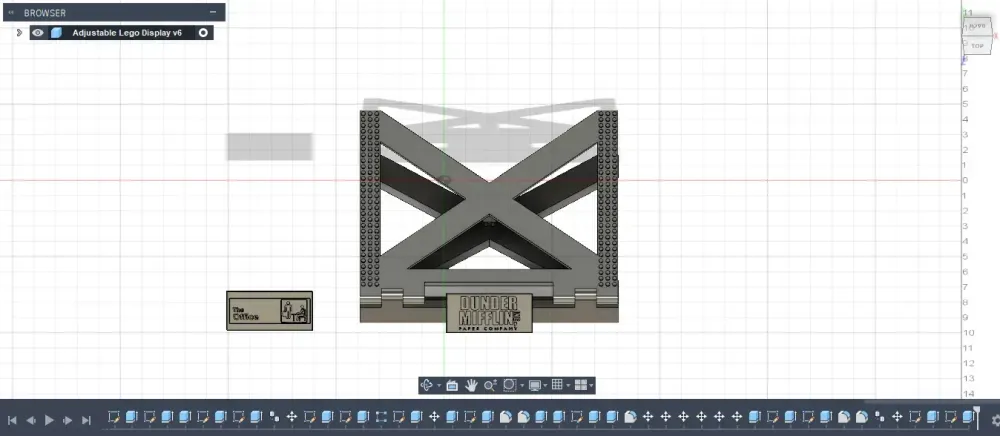

The Elevated Brick Model Display provides a unique platform for showcasing Lego or other brick models, elevating them for better visibility and reducing clutter. This model was made to display the LEGO "The Office" model. I designed it to include an adjustable angle and swappable front plates of the show logo and the company logo. Display fits 304x243mm model.

Purpose

It is intended to serve as a functional and aesthetic stand for displaying toy bricks or small model sets in homes or exhibitions.

Printing Suggestions

.16 layer height

Low infill is suffice for this model but if you have a different model that fits the frame but is heavier, maybe use more.

Gyroid

3 walls

Brim not required

Support: Normal~ Support Plate (on build plate only), Adjusting Base Pin, Support Plate Hinge Pin, Adjusting Rod, Adjusting Base NOT only on build plate); Tree~ Base, Support Plate Hinge; None~ Hinge Pins, Logo Plates.

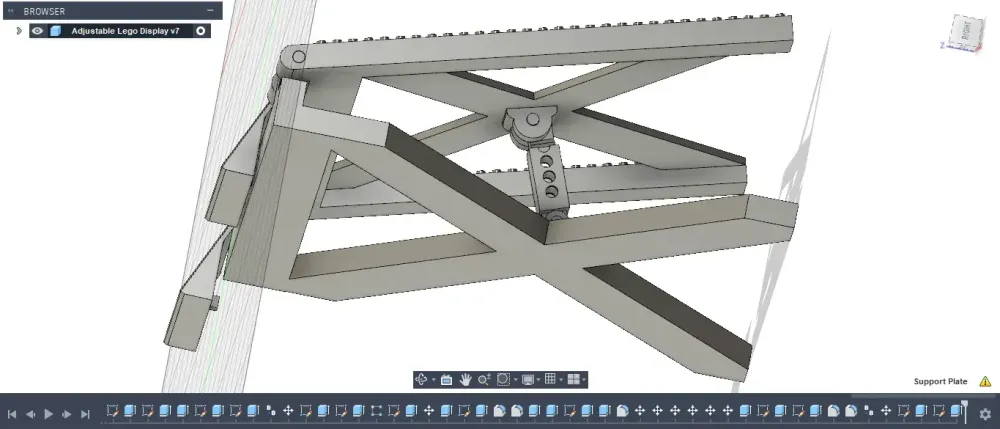

Assembly Instructions

You will need a 6x20mm bolt and nut (I chose a wingnut for ease of loosening by hand).

- The base and support plate have to be cut to fit on the plate so begin by gluing those parts back together.

- Glue on the support plate hinge, ensure you have the correct orientation.

- Line up the base and support plate and insert the 2 hinge pins from the outside.

- Connect the adjusting base to the display base and secure with the adjusting base pin.

- Connect the adjusting rod to the display support plate and secure with the support plate hinge pin.

- Lower the support plate and insert the adjusting rod into the adjusting base to the desired angle and insert a 6x20mm screw to secure the position.

- OPTIONAL: Pop in the logo plate on the front!

Elevated Brick Model Display

K1 Max 0.16mm layer, 2 walls, 3% infill

0.2mm layer, 2 walls, 15% infill
