I got irritated by my bottles of cider and beer rolling about in the fridge.

So I decided to grab designs off the internet.

But my hands were itchy for a tweak.

So decided to make a modular design which allows upward expansion by stacking and also length-wise extension to accommodate longer bottles if necessary.

The design allows maximum diameter of 7cm (70mm) cans/bottles to be slot in. Unfortunately I still haven't thought of a design which can accommodate any diameters.

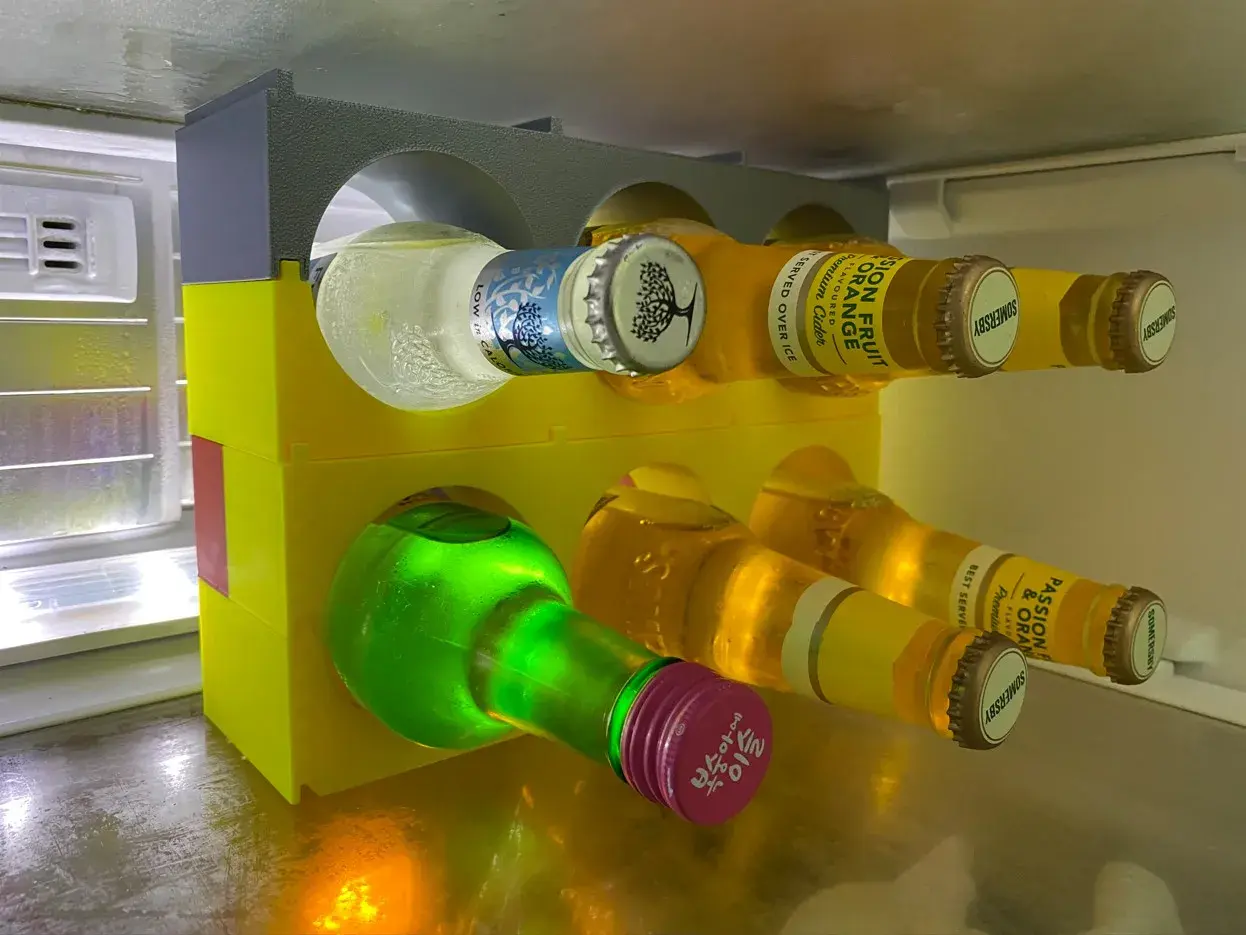

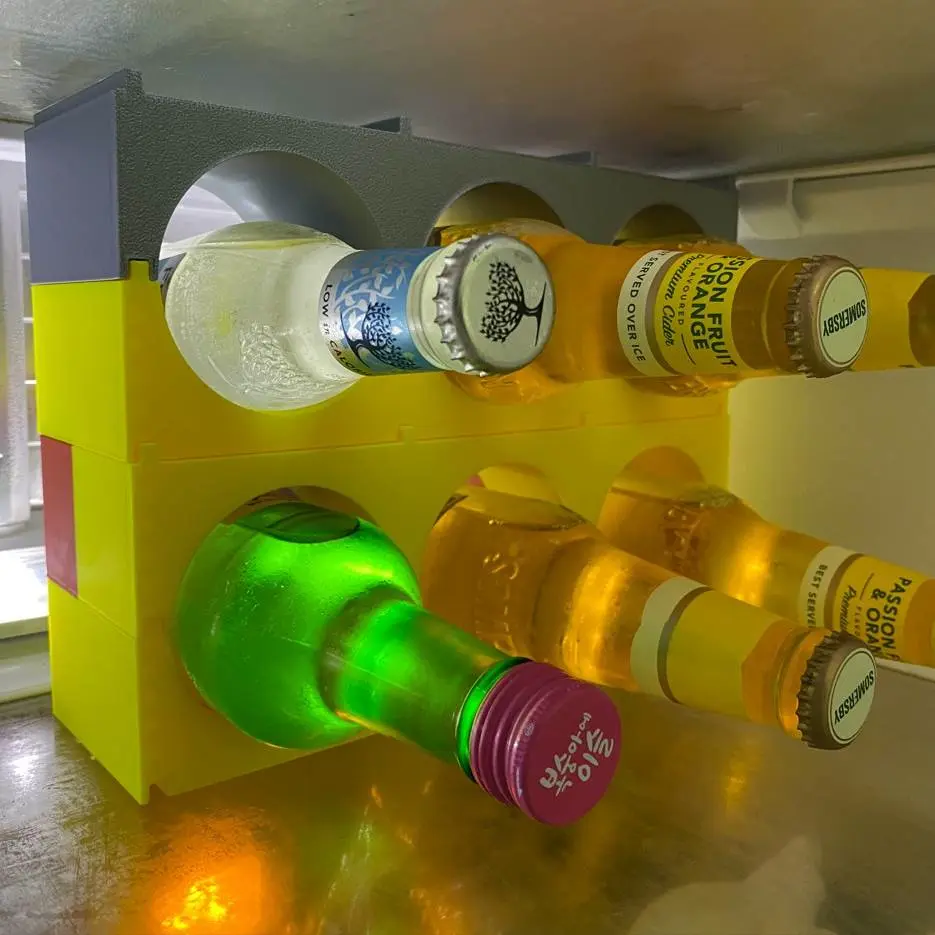

To expand upwards, you can choose to either slot the top piece vertically down over the bottom piece. Or slide it from front to back over the bottom piece.

To extend length-wise to accommodate longer bottles, just print another copy of the bottom/top piece and slot into the existing bottom/top piece.

Print Settings:

- Materials: PLA, Hyper PLA, PETG (I printed my prototype in PLA)

- Support: Not required if you lay the object on the front surface (e.g. lay the object on the surface which does not have any holes or protruding surface)

- Infills: default

Fridge Bottle Rack

0.2mm layer, 2 walls, 15% infill
