Description

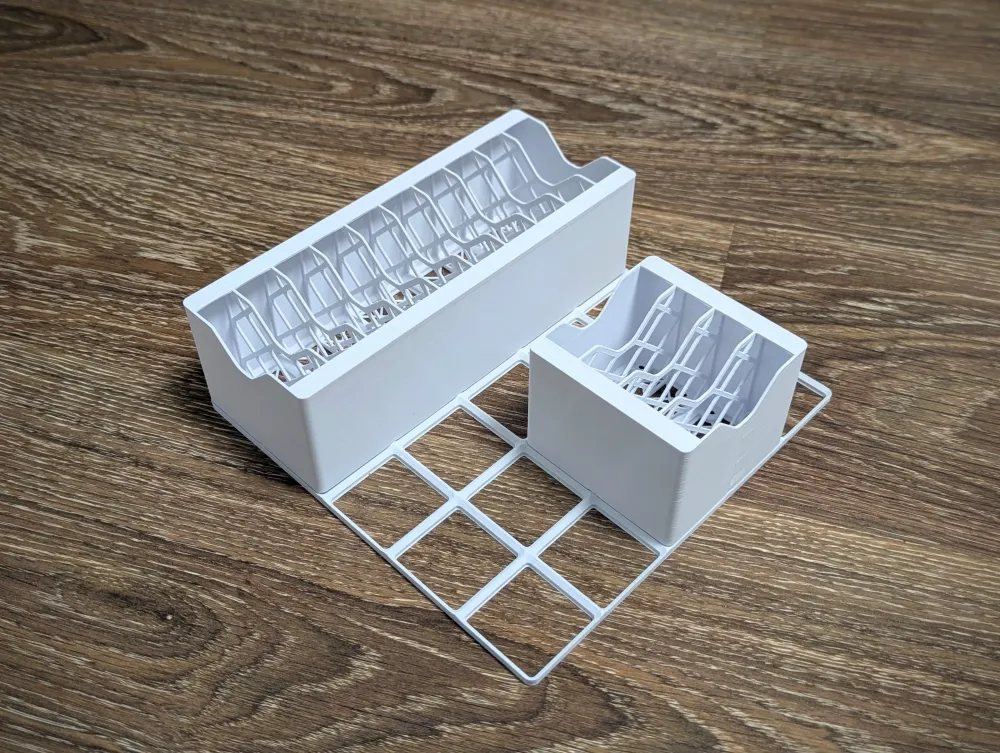

This set of boxes is designed specifically for storing cables. They have a lightweight design to use a minimum amount of plastic. The extended container's edge prevents cables from slipping out.
These boxes are alterations of my original design ( https://www.crealitycloud.com/model-detail/66d46dfeb1980a87edce52aa?source=22 ) but are adapted to work with Gridfinity modular system. I tried to keep them as light as possible and they are just a little bit bigger and heavier than the previous. But if you are not interested in using grid system I would recommend to stay with original model.

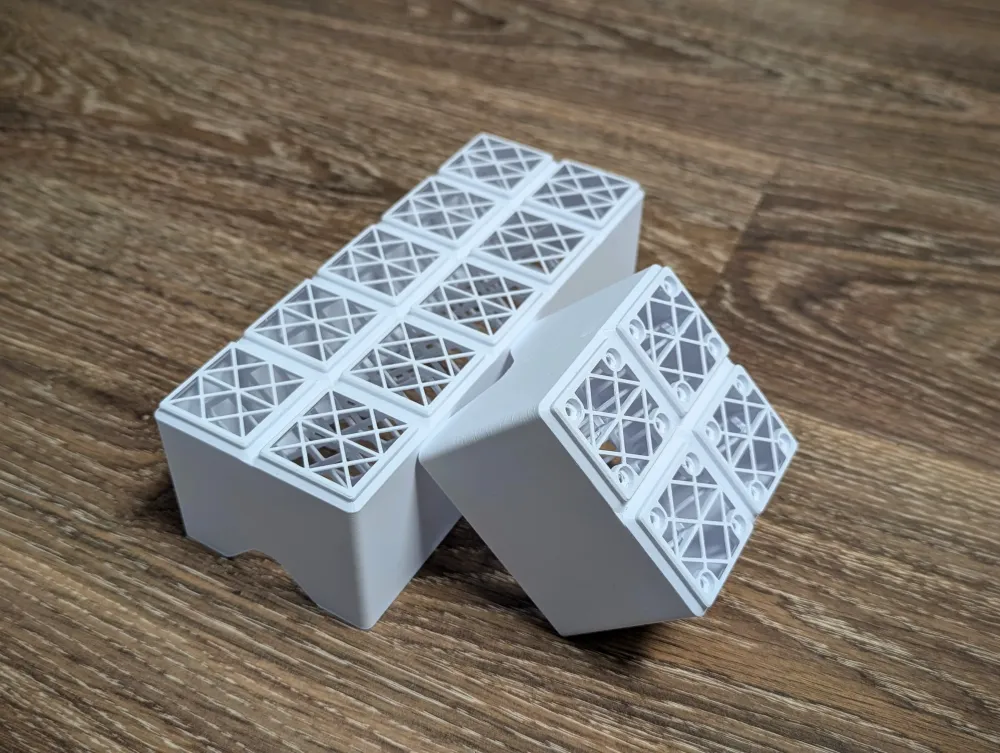

The boxes are made in 6 sizes and have variations with or without slots for magnets on the bottom side. All of them are two slots wide but vary in length.

Used slots on a grid | Dimensions, mm | Compartments | Weight, g (With magnet slots)

2x1 42x84x66 2 28 (29)

2x2 84x84x66 4 45 (48)

2x3 126x84x66 6 63 (66)

2x4 168x84x66 8 80 (84)

2x5 210x84x66 10 97 (102)

2x6 252x84x66 12 114 (120

Printing recommendation

I recommend using PETG or PLA+ for better durability but regular PLA will also work fine.
Should be printed without supports.
You need magnets of 6mm diameter and 2mm thickness for variant with magnet slots. But it is not necessary to use magnets in every slot. It's up to you to decide where to place them.

Compatibility

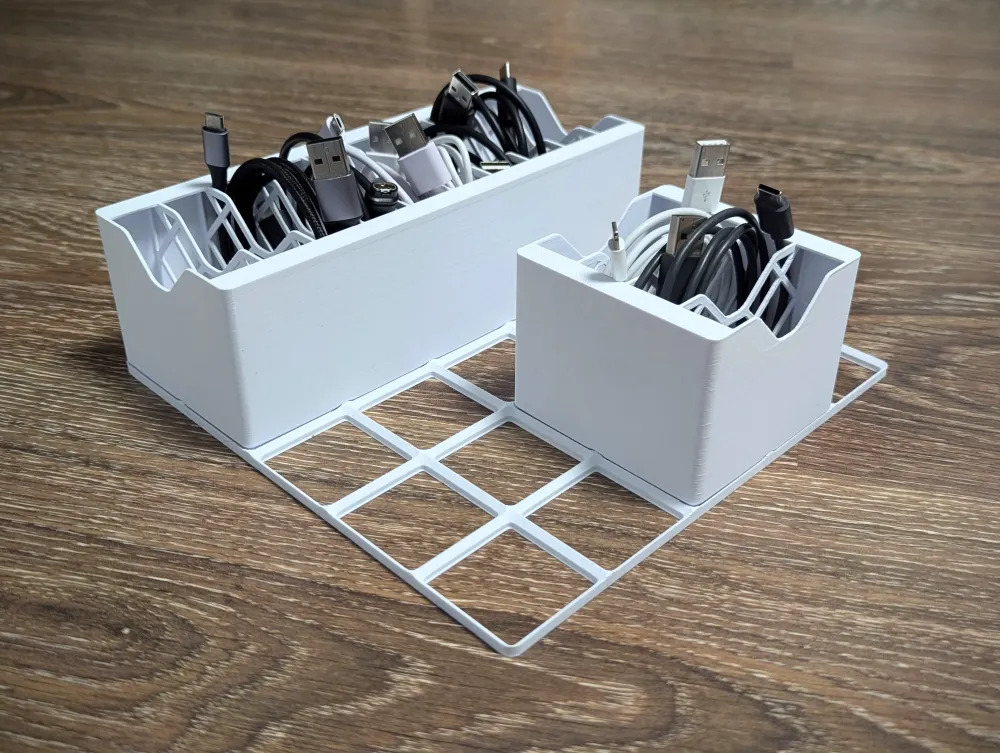

This organizer is ideally suited for managing short (up to several meters) flexible cables. It is not suitable for thicker or stiffer cables like HDMI, DisplayPort, and similar types.

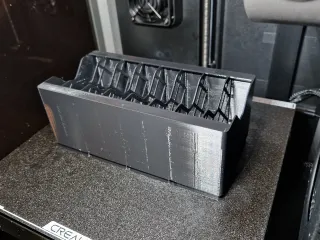

Gridfinity Cable Organizing Boxes

0.12mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 15% infill, CR-PETG

0.2mm layer, 2 walls, 15% infill
