Modular kit for Ikea BROR workbench and shelving units. Updated v2 of previous model.

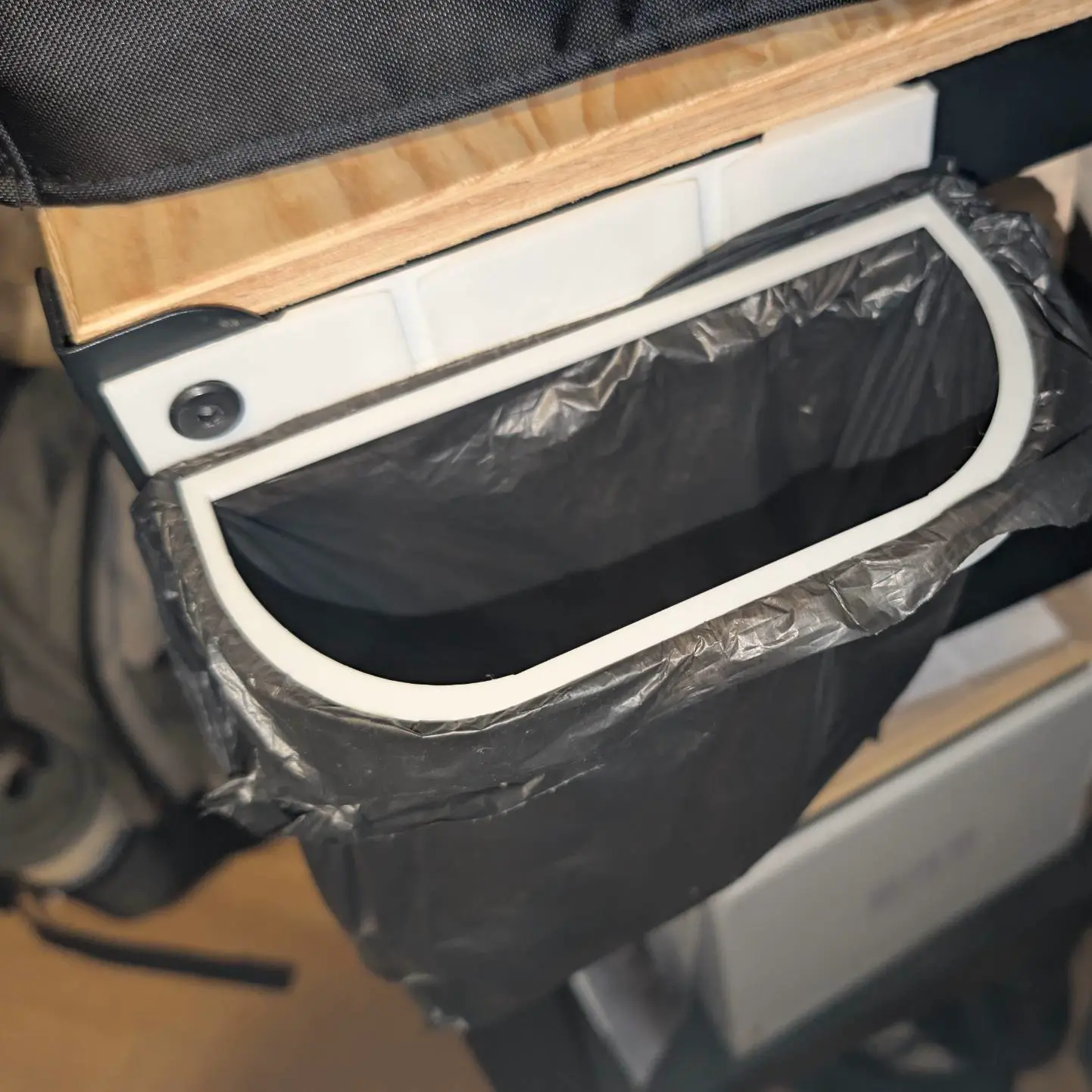

I'm forever finding bits of PLA from failed prints or support parts after prints. This little bracket will allow me to place a bag close to the printer.

Currently have an option for a bin, but will likely update to include extra options including a right orientated option for the BROR unit

Faceplate is advised to be printed with support on and face up to allow for best orientation of panel location.

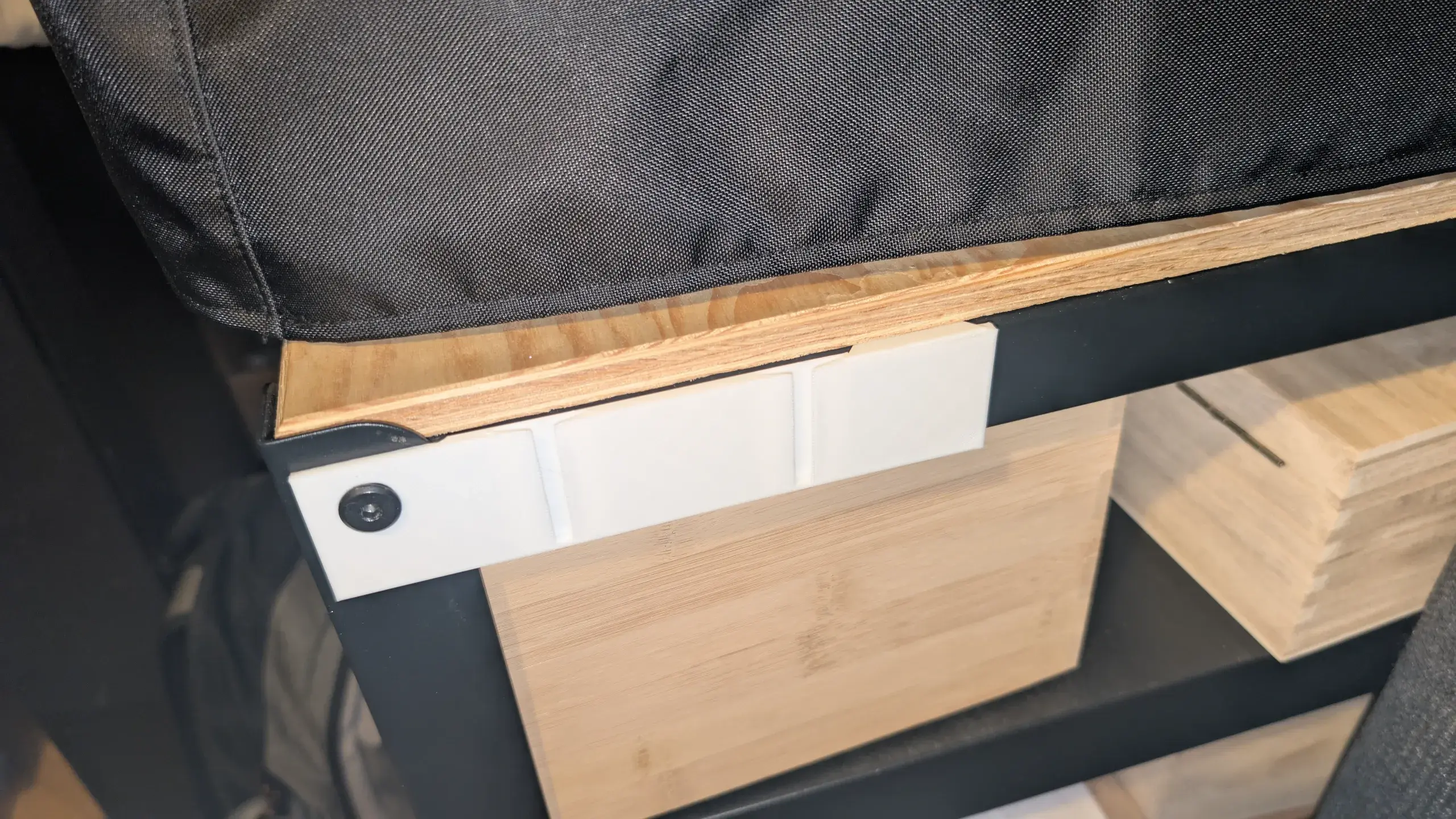

BROR Faceplate left v2 is the new updated connection panel form for the IKEA BROR workbench and shelving range.

BROR Faceplate lip and brim file for the tab that has now been separated from the main faceplate. This allows for a better print and I superglued this after printing. The model for the bin bag fitting is also included

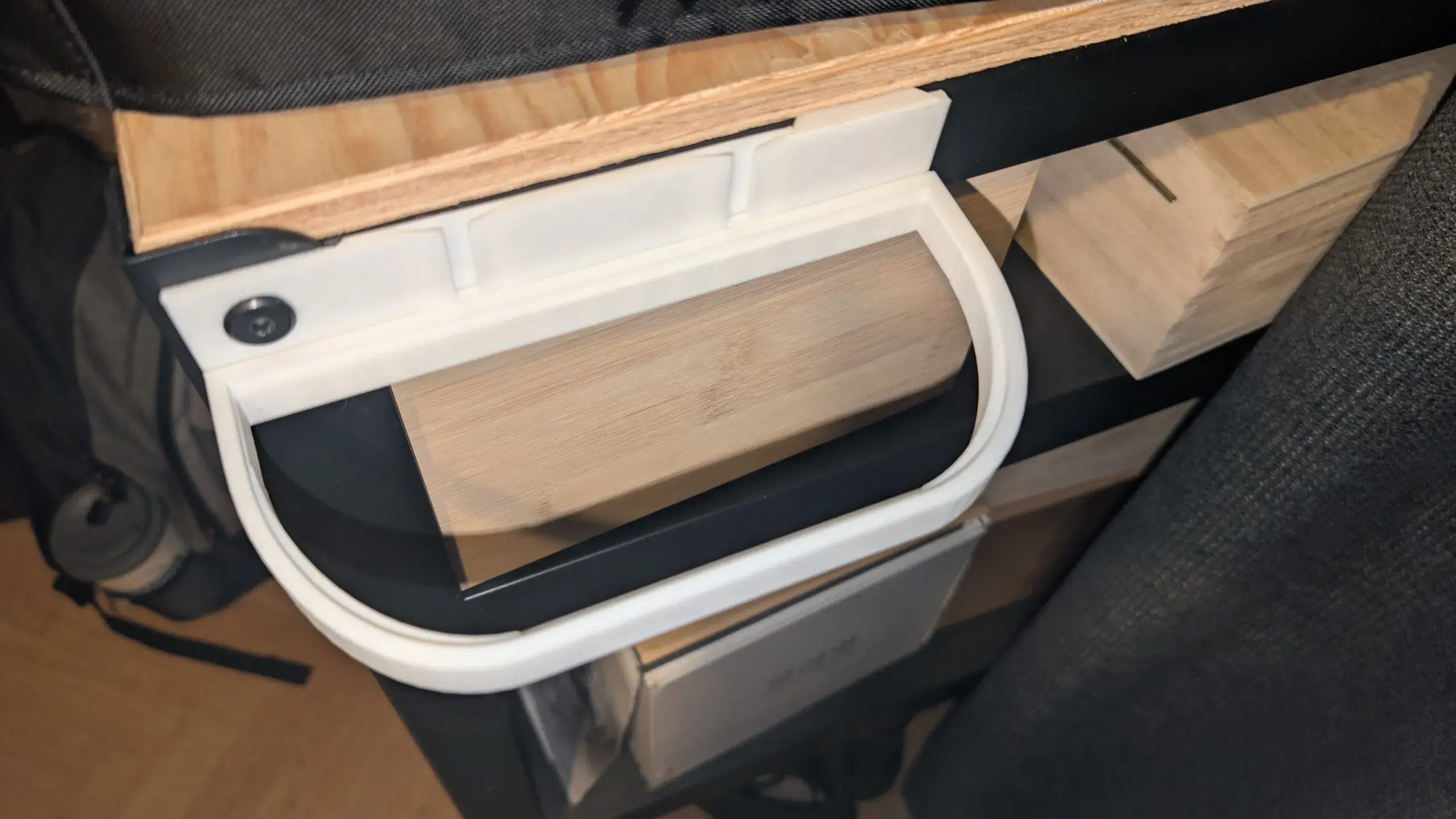

BROR Faceplate binbag fitting is the same but just without the additional lip.

Still using the "dog waste bag size as standard"

- Have improved alignment of the hole for the bolt to used to secure the faceplate.

- Option for 3 x 2.5mm magnets on rear for extra strength if required

- Separated faceplate from frame to support modular updates and new designs. Easier access to bolt when needed.

- Slimmed down size of frame, now allows for additonal panel on top of bag for alternative purpose or feature.

IKEA BROR Modular fitting v2 - Multiple bracket options

0.2mm layer, 2 walls, 10% infill

0.2mm layer, 2 walls, 15% infill
