Update July 17 2026 - I added an optional drawer face and handle to the project. The handle matches the handle on the K2 Plus exactly. The handle is printed separately to allow for easier color coordination. You will need two m3x6mm flathead screws to attach the handle to the faceplate. This faceplate attaches to the drawer exactly the same as the original, so you won't have to reprint the drawer.

----------------------------

Update - I made a mistake with the original upload. The files "Base - Front Right Side" and "Base - Rear Left Corner" had the incorrect recesses in them, which would cause the printer to be on a teeter-totter. The replacement pieces are named "Base - Front Right Side v1.1" and "Base - Rear Left Corner v1.1". I will also redo the 3mf file in the next few hours, as well.

My apologies for this mistake.

------------------------------

I've had multiple requests for a larger version of my existing K2 Plus Drawer Base, so here it is (finally). This model is the exact same footprint, with the same stackable feet, as my existing K2 Plus bases, so all you have to do is add it to your existing stack.

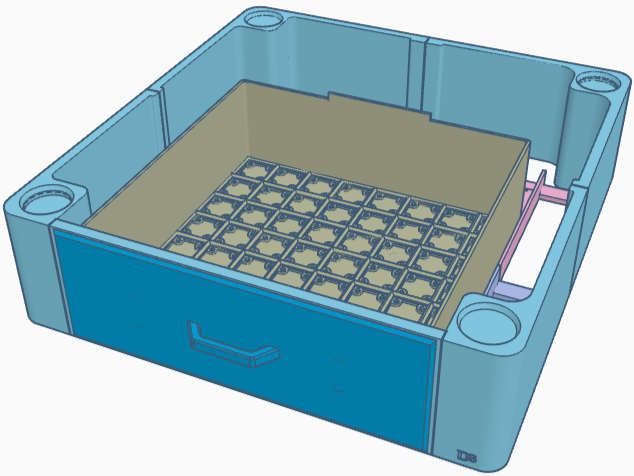

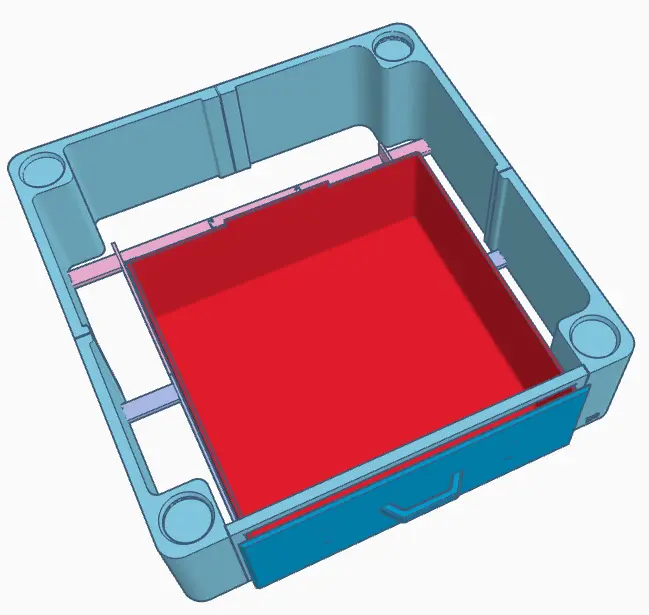

There is a single large drawer which will utilize the entire build plates surface of the K2 Plus to print. There are 2 drawer styles available for you to choose from - Plain or Gridfinity. The Gridfinity layout is 8x-8y-16u. The overall height of the Drawer Base is 140mm. The width and depth of the entire base match that of the K2 Plus. For those of you that aren't using my stackable K2 Plus bases, the printers feet sit in the recesses in the top of the base. I have been using both my existing Drawer Base and Build Plate Holder for quite awhile now. All of the weight of the printer is transmitted through the large corners and the feet of the base.

Assembly is straight-forward, using dovetail connections throughout. Applying glue to these connections is recommended. The Drawer Face can be printed flat on the build plate, so it's extremely easy to print the face plate in one color and the handle in a 2nd color, with a single filament change.

While this model isn't subject to heat, it is subject to the vibration and movements of the printer. I printed my bases with PETG and have had zero issues.

You can apply non-slip adhesive furniture pads to the bottom of the feet on the base, as well. The base of the foot is 40mm in diameter.

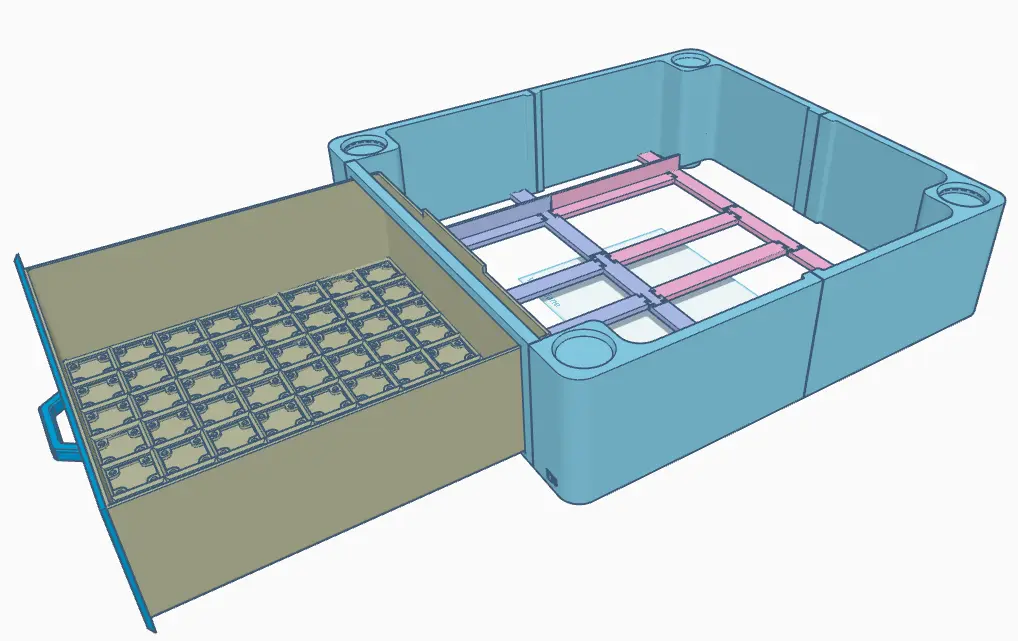

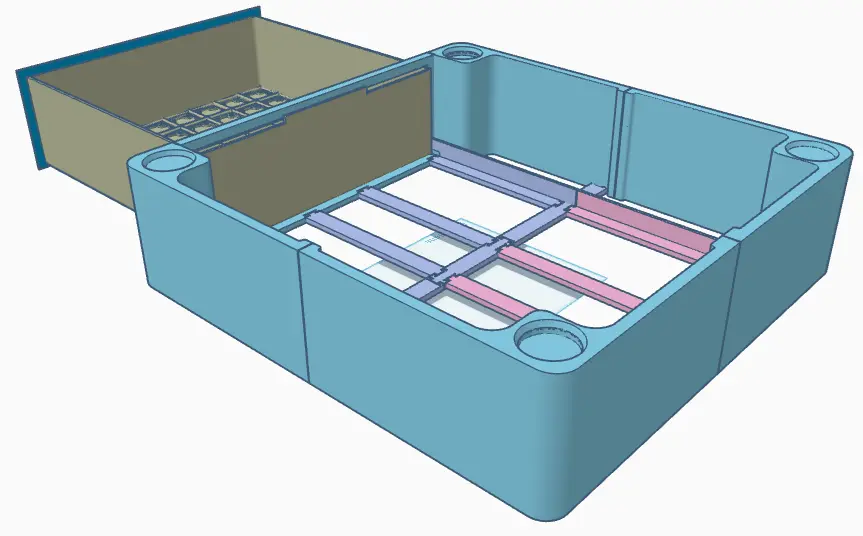

The plate/pieces marked as "Drawer Support - Rear" are completely optional if you are using one of the included drawers. These are the pieces colored Pink in the screenshots. However, I will also be uploaded "Mega" drawers that can be used with this model. The Mega drawers are much larger and will require additional support under the rear of the drawer.

My other stackable bases for the K2 Plus - all models are free downloads:

K2 Plus Drawer Riser

K2 Plus Build Plate Base

K2 Plus Securement Base

K2 Plus Drawer Base - Large

0.2mm layer, 2 walls, 15% infill

0.2mm layer, 4 walls, 15% infill
