This model is a remix of the original K2 Pro Lid Riser, full credit goes to the original creator David-Blake for the excellent design and idea:

👉 https://www.crealitycloud.com/model-detail/k2-pro-lid-lift?source=13

I modified the model to better fit my own setup and needs.

🔧 What I changed:

- Increased the overall height from ~30 mm to ~35 mm

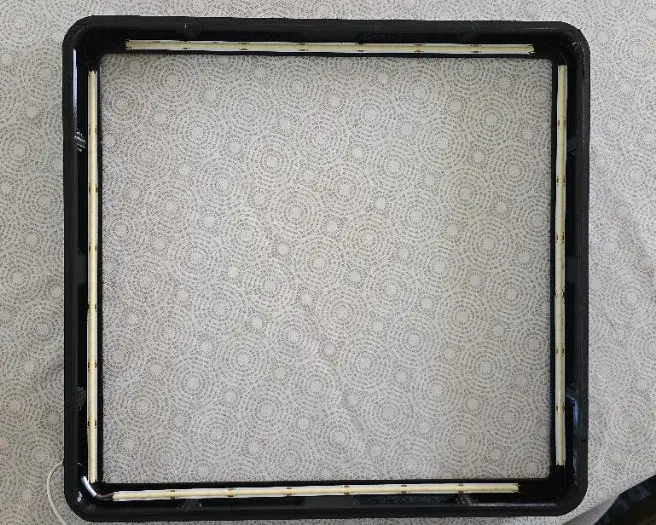

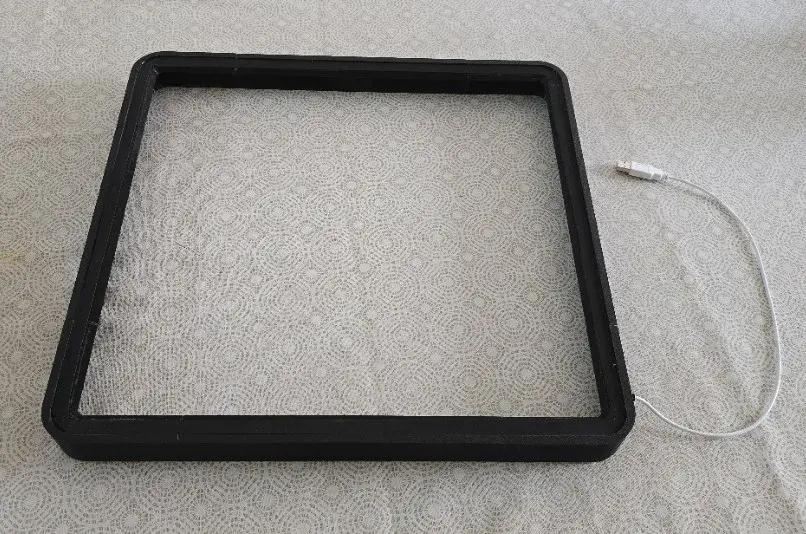

- Added an LED strip channel

- Removed the need for gluing

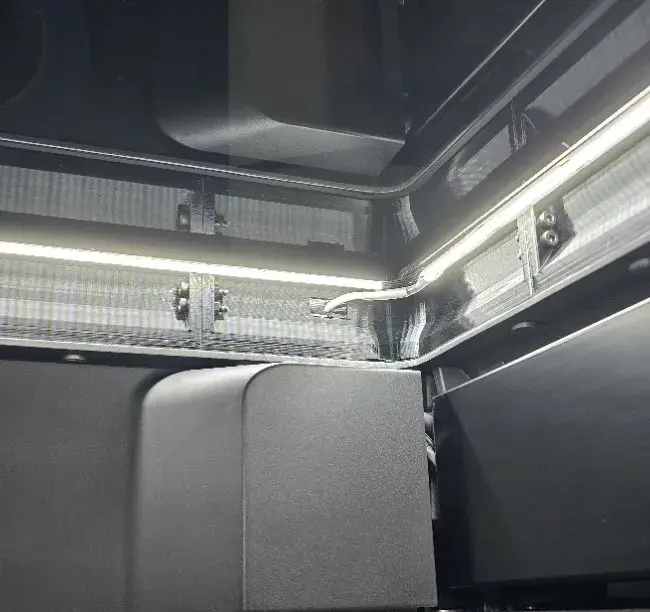

- Replaced glue joints with M3×16 mm screws + nuts for easier assembly and maintenance

💡 LED note:

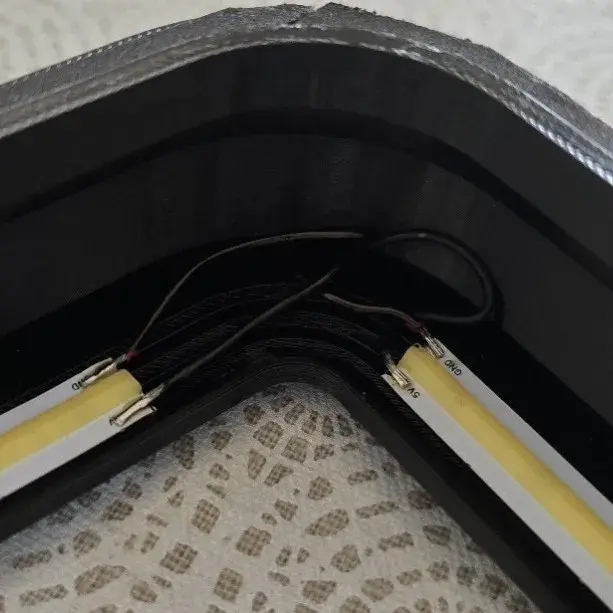

I’m using a USB-powered COB LED strip.

I found that powering an LED strip directly from the printer caused flickering under high power load, so using a separate USB-powered LED solved the issue completely.

💡 USB Passthrough Cover note:

This part was printed at 0.12 mm layer height and split into two halves to allow it to be installed over the USB cable passing through the passthrough hole.

🧩 Optional note:

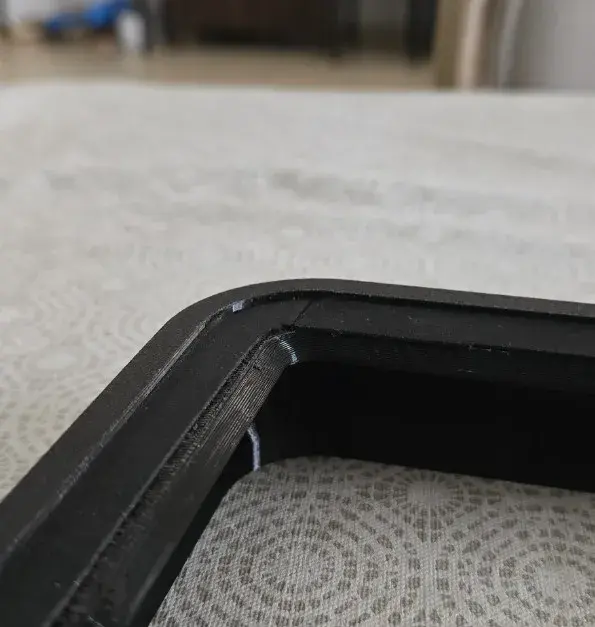

I also used single-sided foam tape (1 mm thickness) inside the LED channel where the lid rests, and where the riser sits on the printer frame. This is optional and not required, but it helped reduce vibration and minor noise in my setup.

If you like the original concept, please check out and support the original creator — this remix wouldn’t exist without their work.

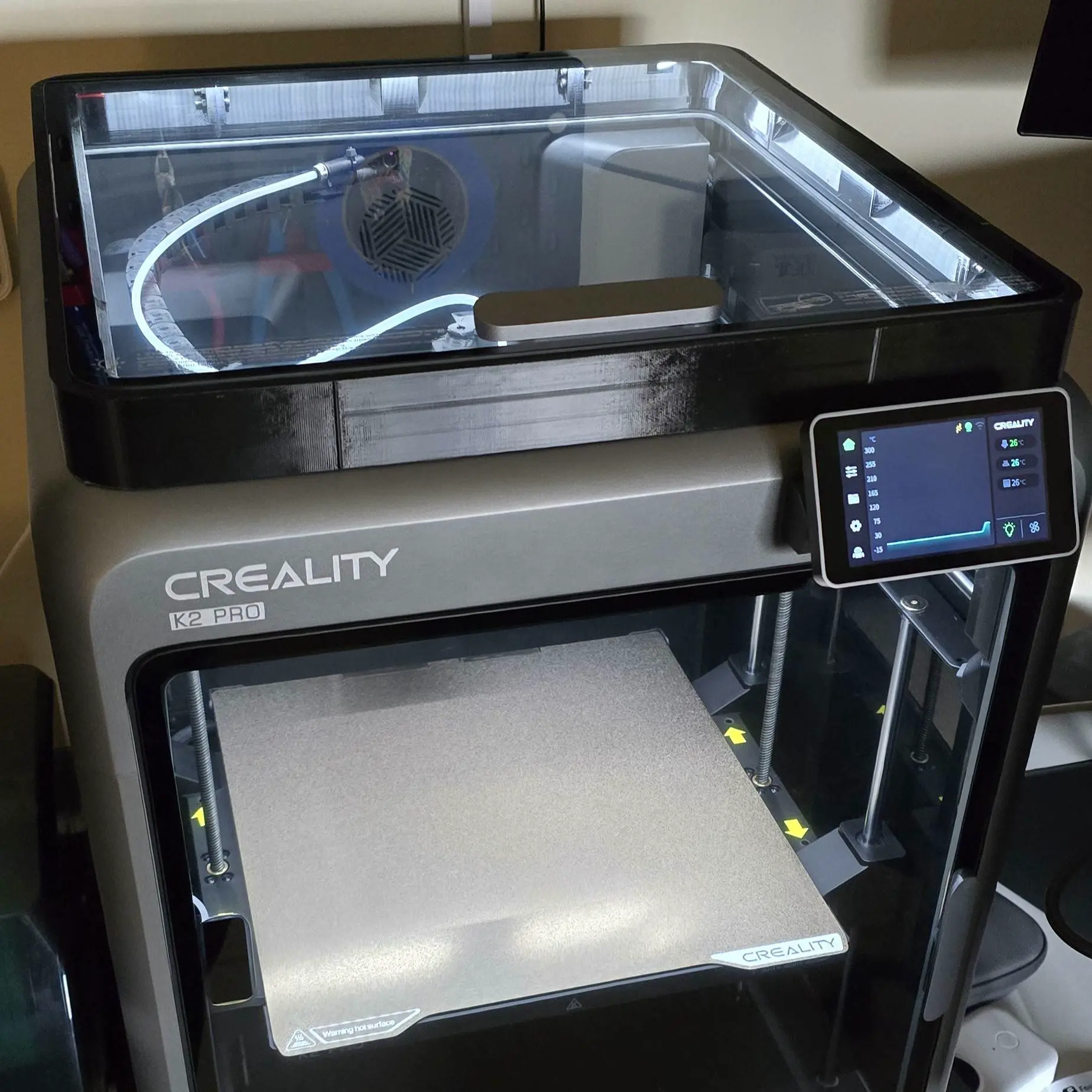

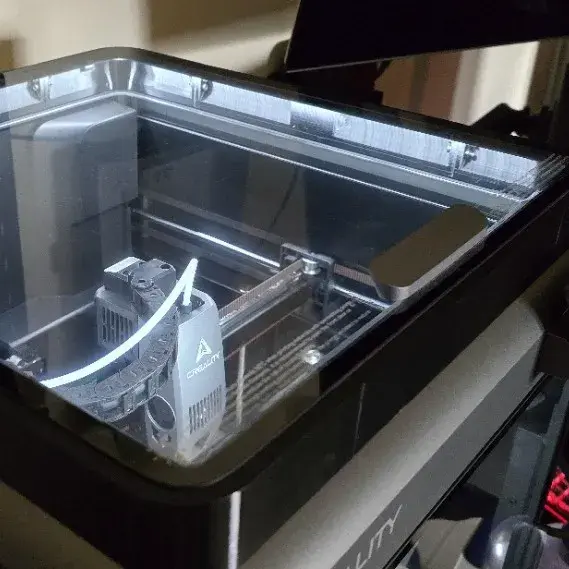

K2 Pro Lid Riser with LED Channel

0.2mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 15% infill
