This project is an advanced modular platform designed for students and electronics enthusiasts to explore the principles of electromagnetism, energy storage, and high-voltage circuits.

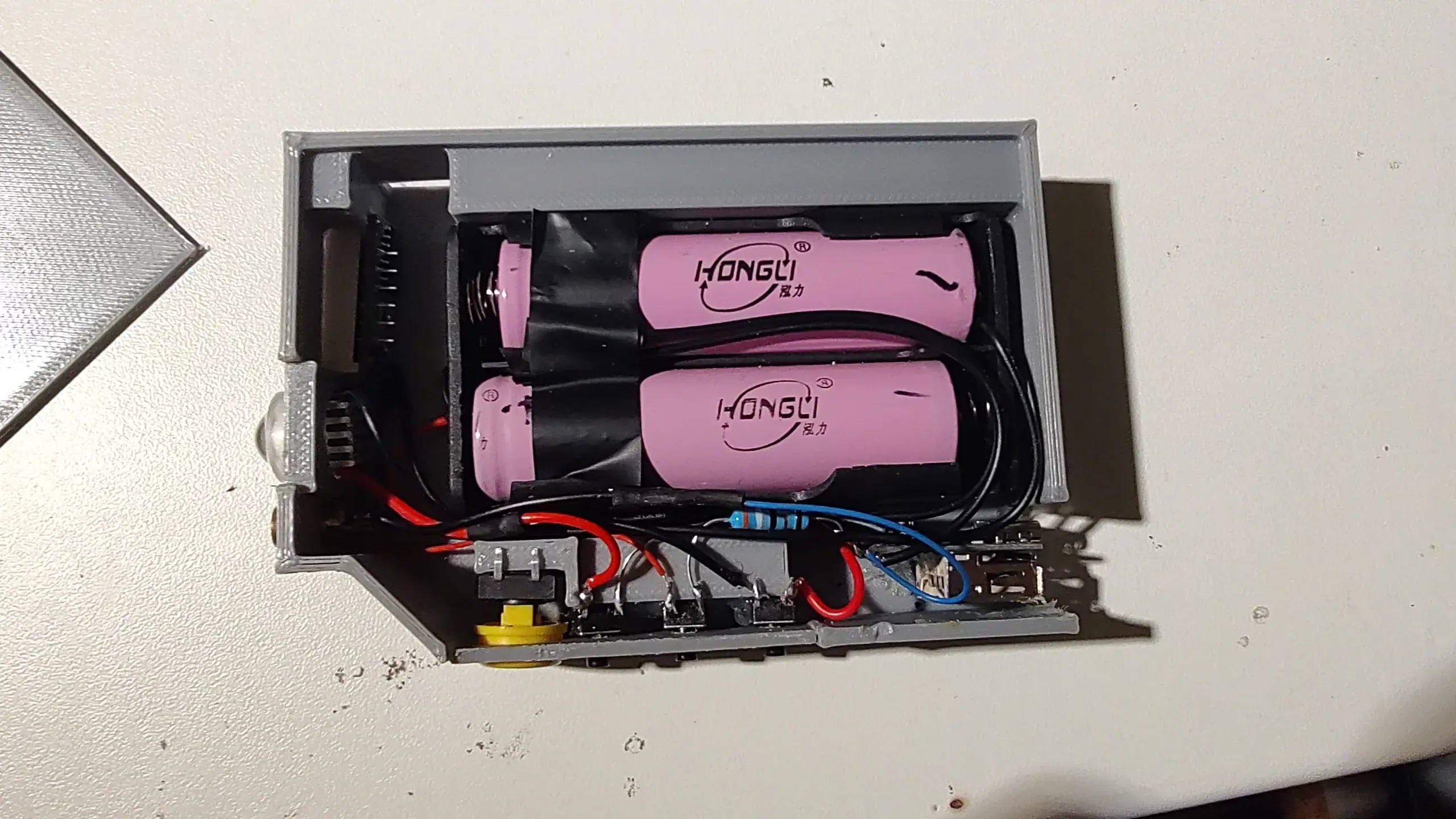

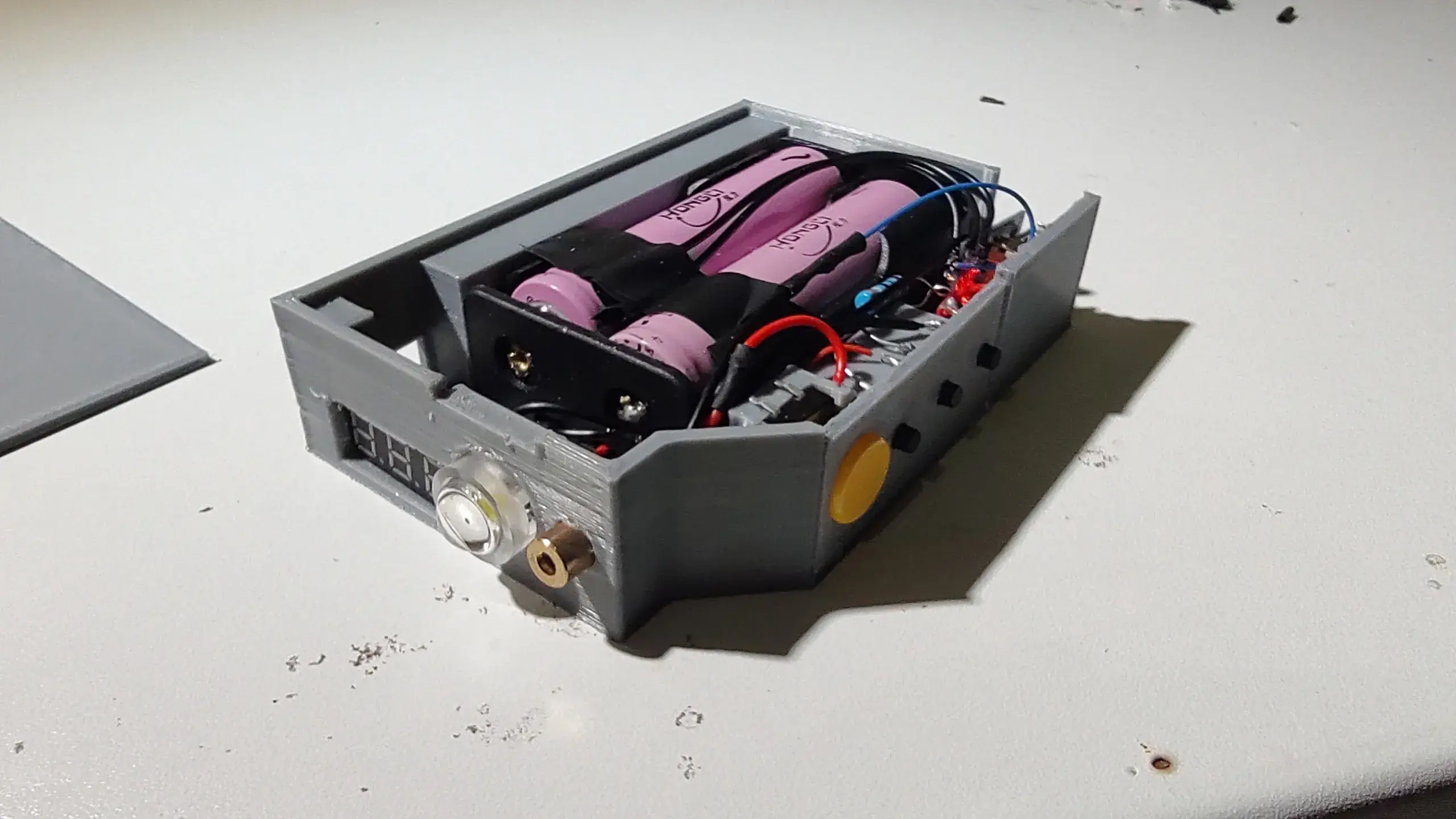

The core of the system is a Power Management Hub powered by two 18650 batteries in a parallel configuration (Vout=3.7V−4.2V), which serves as a base for various swappable experimental modules.

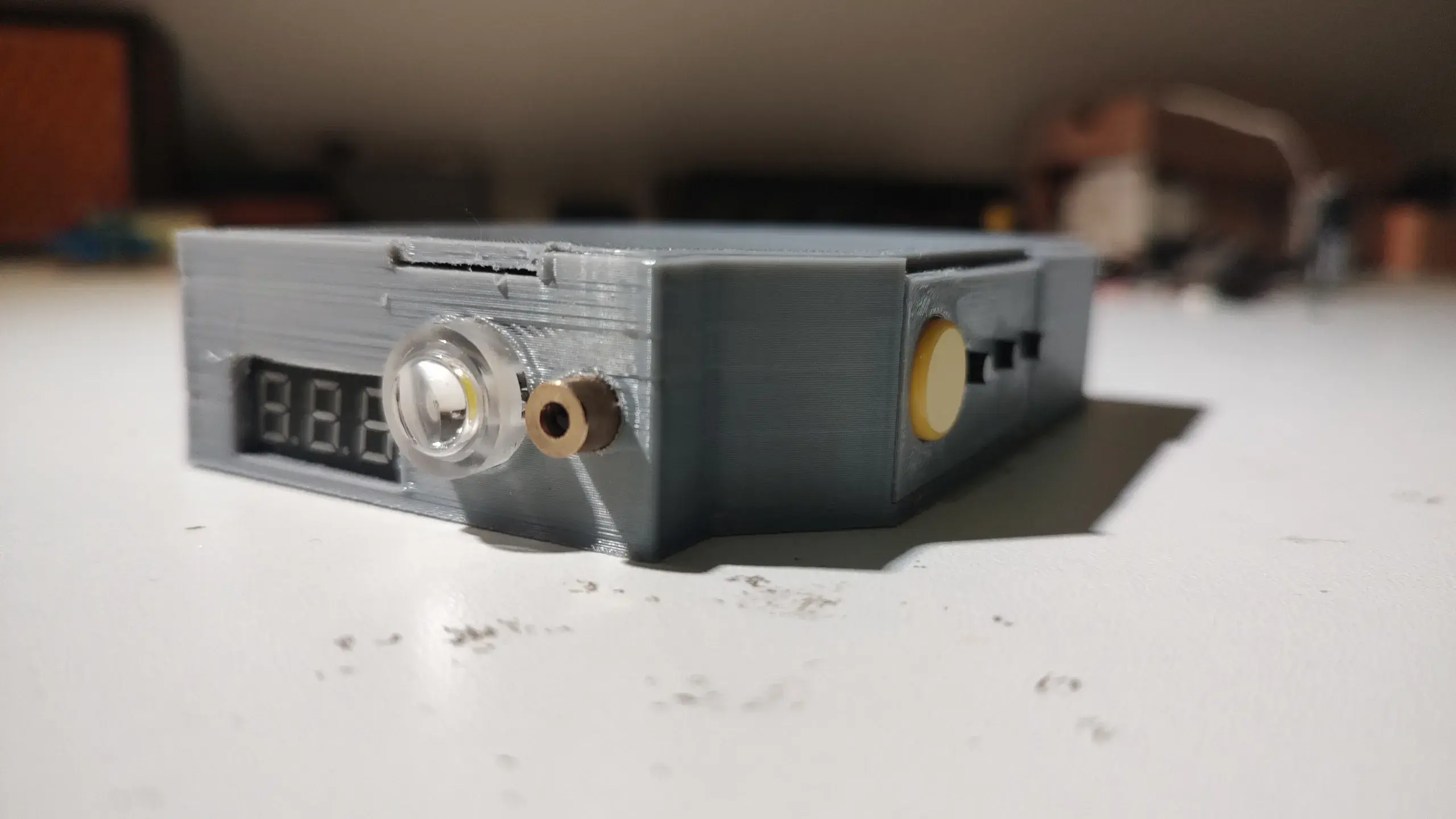

Features of the Control Hub:

Charging & Protection: Integrated USB-C charging module with a 5V USB-A output.

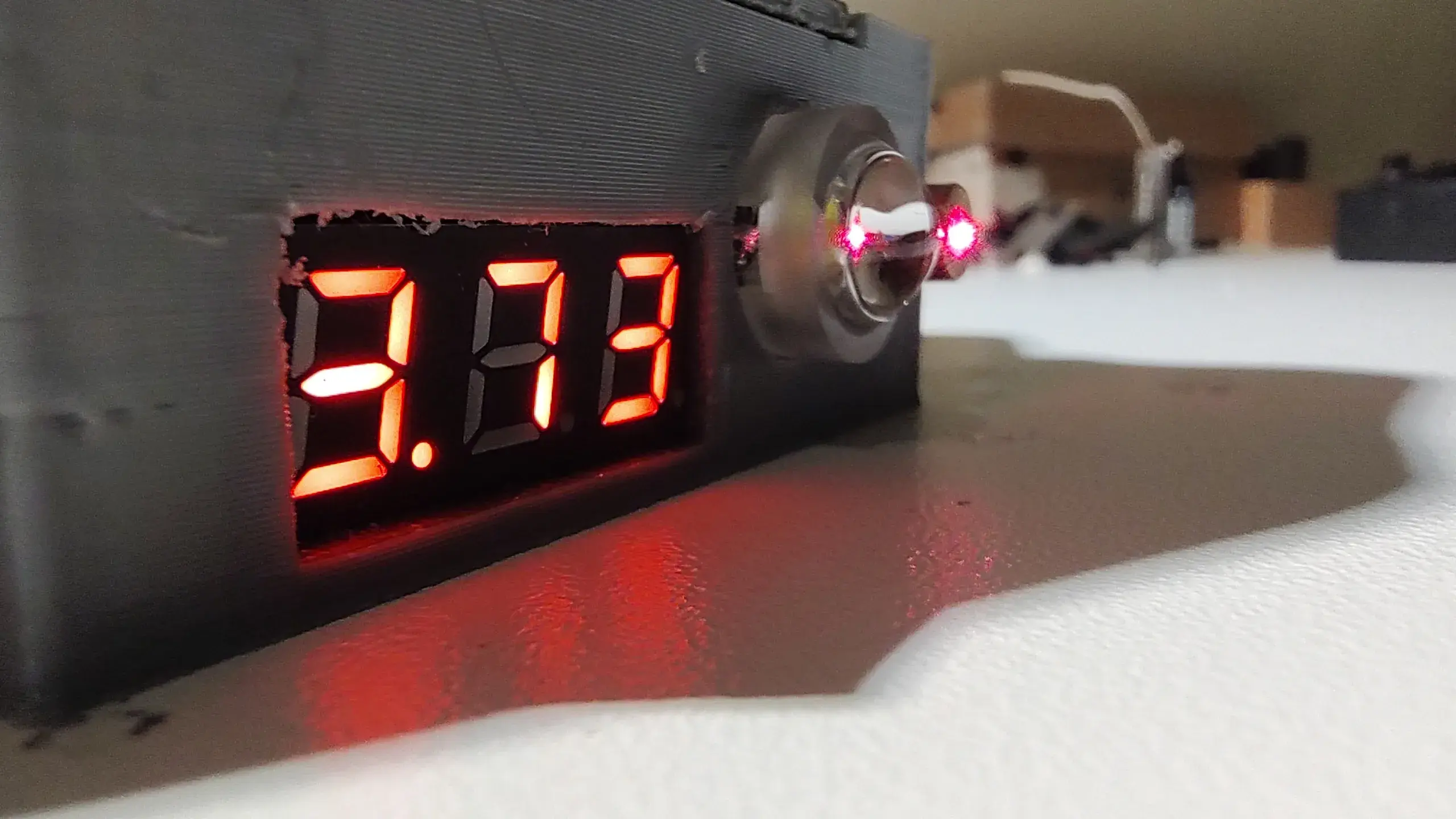

Instrumentation: Built-in digital voltmeter for real-time monitoring of battery discharge curves.

Auxiliary Outputs: Dedicated control buttons for a 5V laser diode (optical alignment) and a high-efficiency LED flashlight.

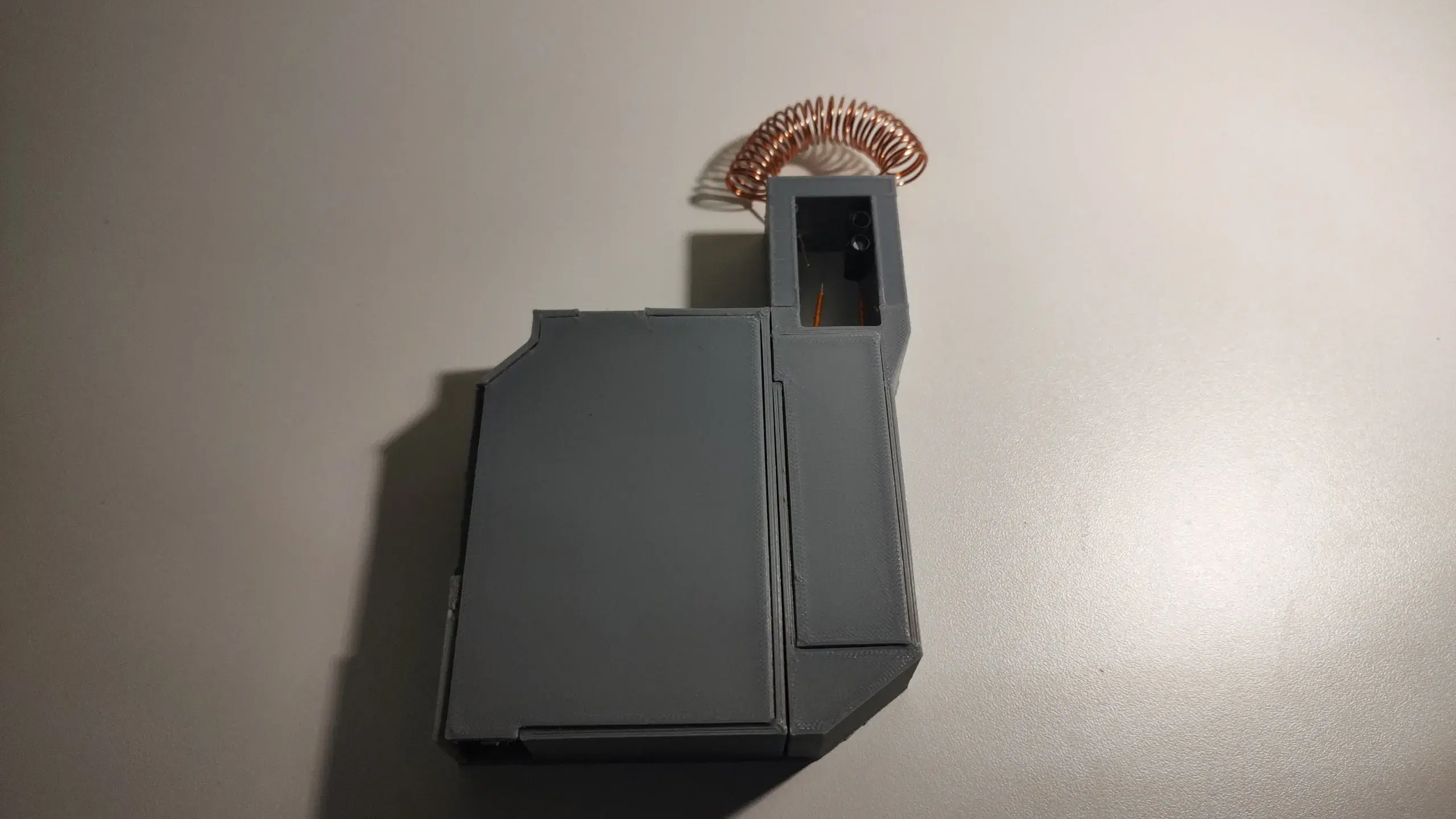

Magnetic Interface: Modules connect via a quick-swap 5x5x5mm neodymium magnet system, ensuring solid electrical and physical contact.

Experimental Modules Included:

High-Voltage Transformation Module: Designed to demonstrate the conversion of low-voltage DC to high-voltage AC/DC for plasma and dielectric breakdown studies.

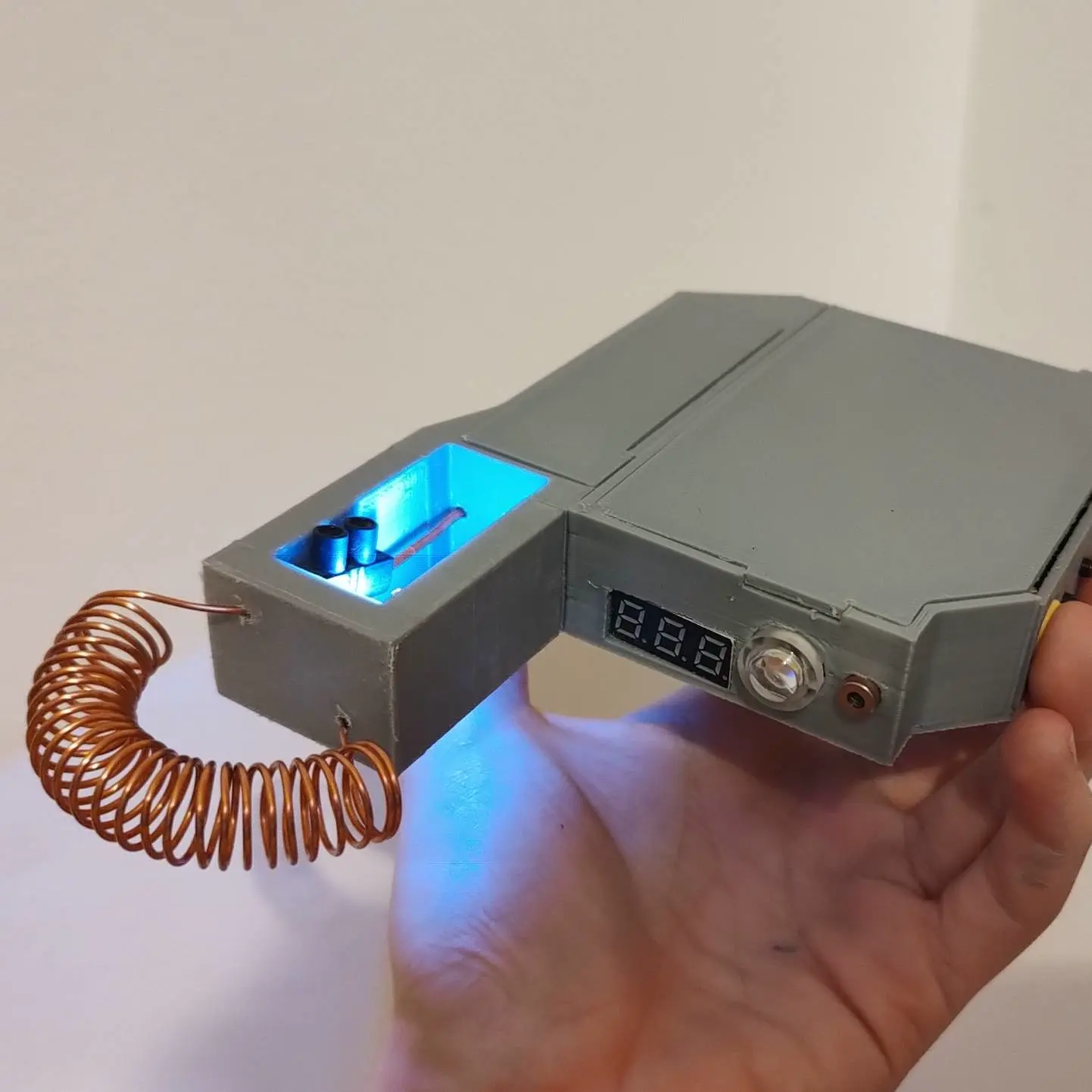

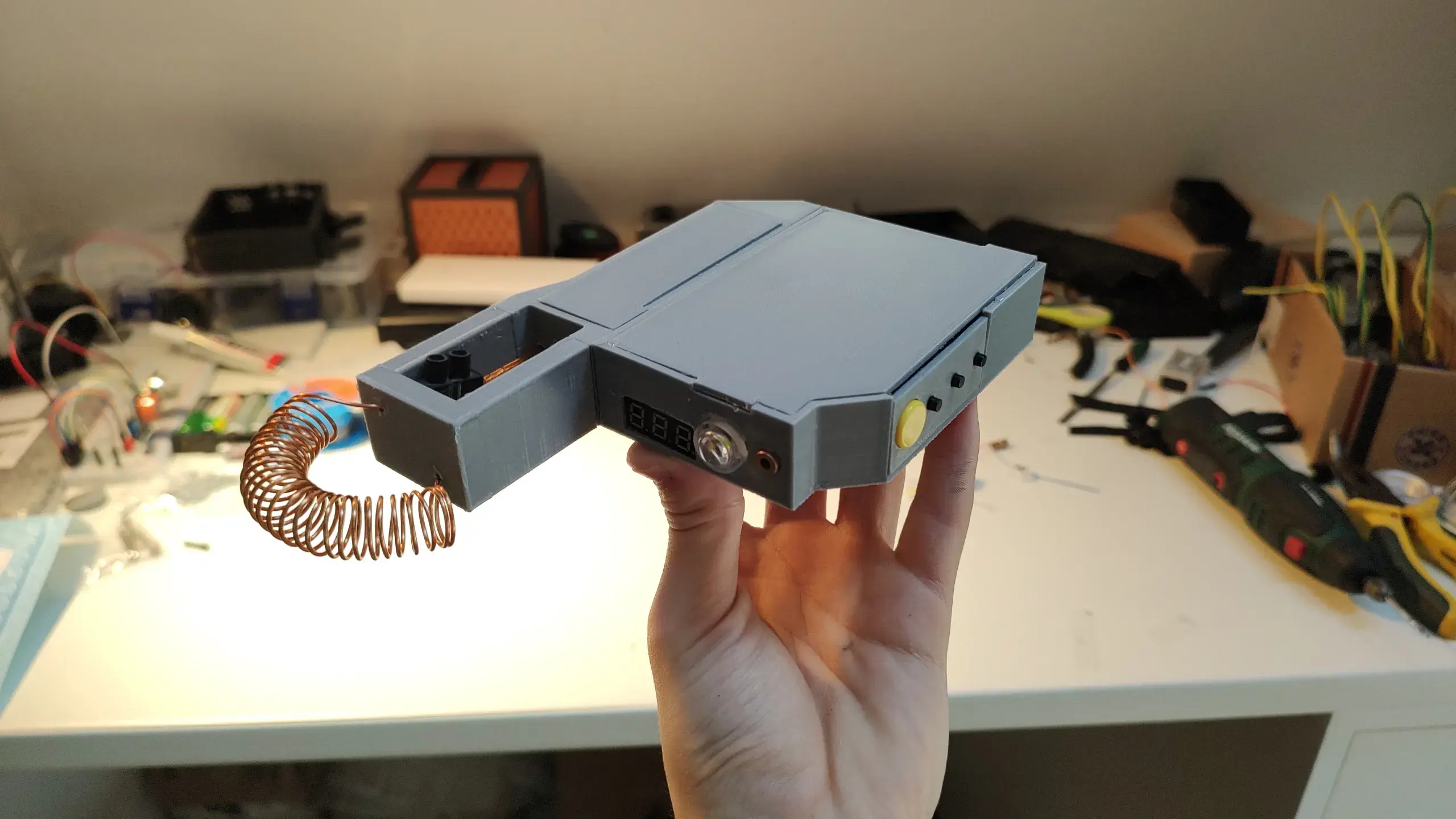

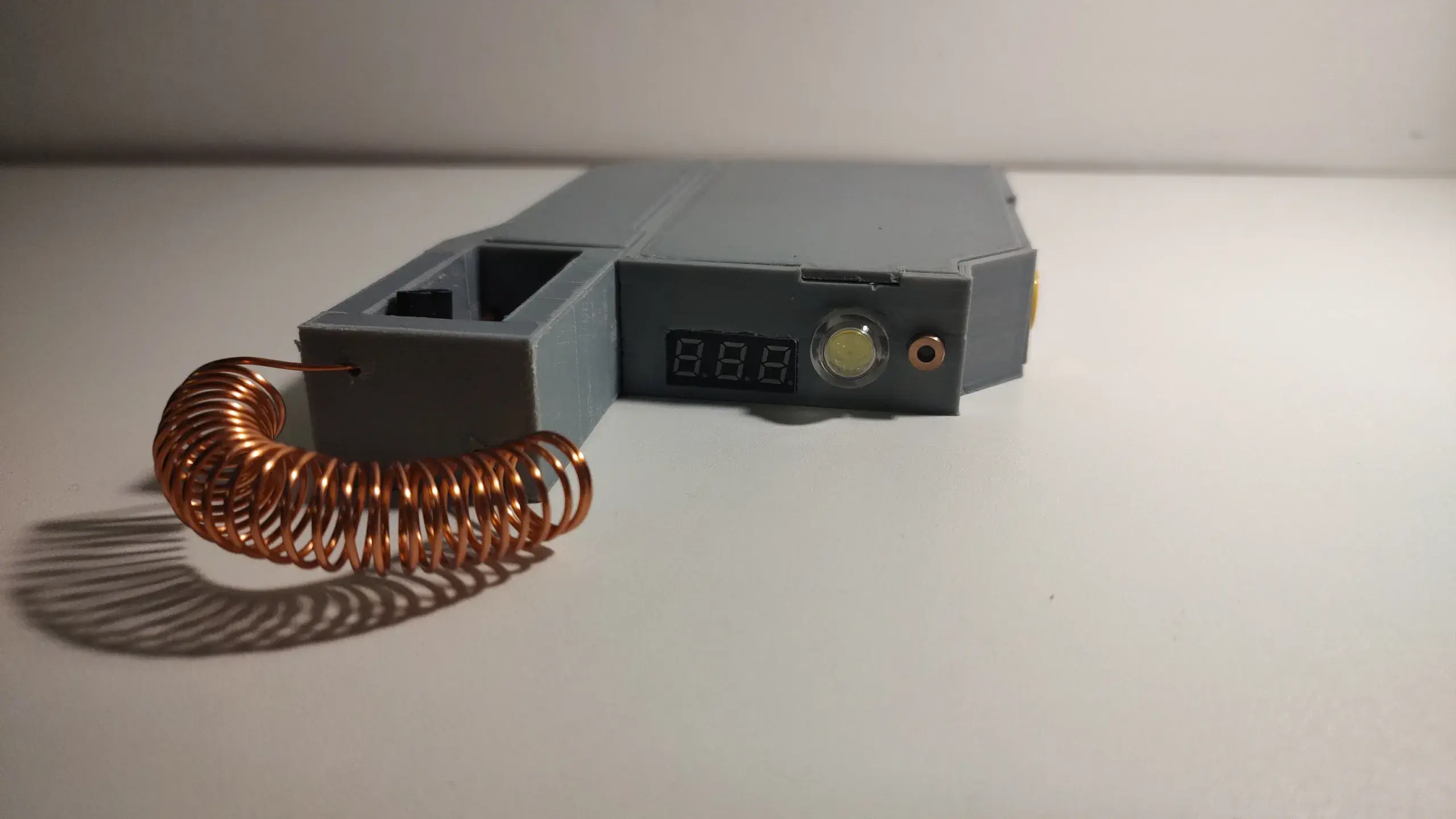

Faraday Induction Demonstrator (EMP Coil): Using 1mm enameled copper wire, this module demonstrates the generation of localized electromagnetic fields and their interaction with passive electronic components.

Kinetic Accelerator (Coil-driven): A basic demonstration of how electrical energy stored in a field can be converted into kinetic motion through a solenoid.

Safety Warning & Disclaimer:

This project is for educational and research purposes only. It involves high-voltage circuits and strong magnetic fields.

Do not use near sensitive medical equipment (e.g., pacemakers).

Always handle high-voltage capacitors with caution.

Observe local regulations regarding radio frequency and electromagnetic emissions.

The parts I used. Most of them are from AliExpress, but the buttons are from a Czech online store (the last 3):
https://www.aliexpress.com/item/1005004027687829.html?spm=a2g0o.order_list.order_list_main.47.322a18027CCwH5
https://www.aliexpress.com/item/1005002592649419.html?spm=a2g0o.order_list.order_list_main.52.322a18027CCwH5
https://www.aliexpress.com/item/1005008115129886.html?spm=a2g0o.order_list.order_list_main.57.322a18027CCwH5
https://www.aliexpress.com/item/1005003583791728.html?spm=a2g0o.order_list.order_list_main.17.322a18027CCwH5
https://www.aliexpress.com/item/4000318226808.html?spm=a2g0o.order_list.order_list_main.22.322a18027CCwH5
https://www.aliexpress.com/item/1005004835997844.html?spm=a2g0o.order_list.order_list_main.26.ee2d1802lgvCxE
https://www.aliexpress.com/item/1005007468198510.html?spm=a2g0o.order_list.order_list_main.32.322a18027CCwH5
https://www.aliexpress.com/item/1005009750232575.html?spm=a2g0o.order_list.order_list_main.37.322a18027CCwH5

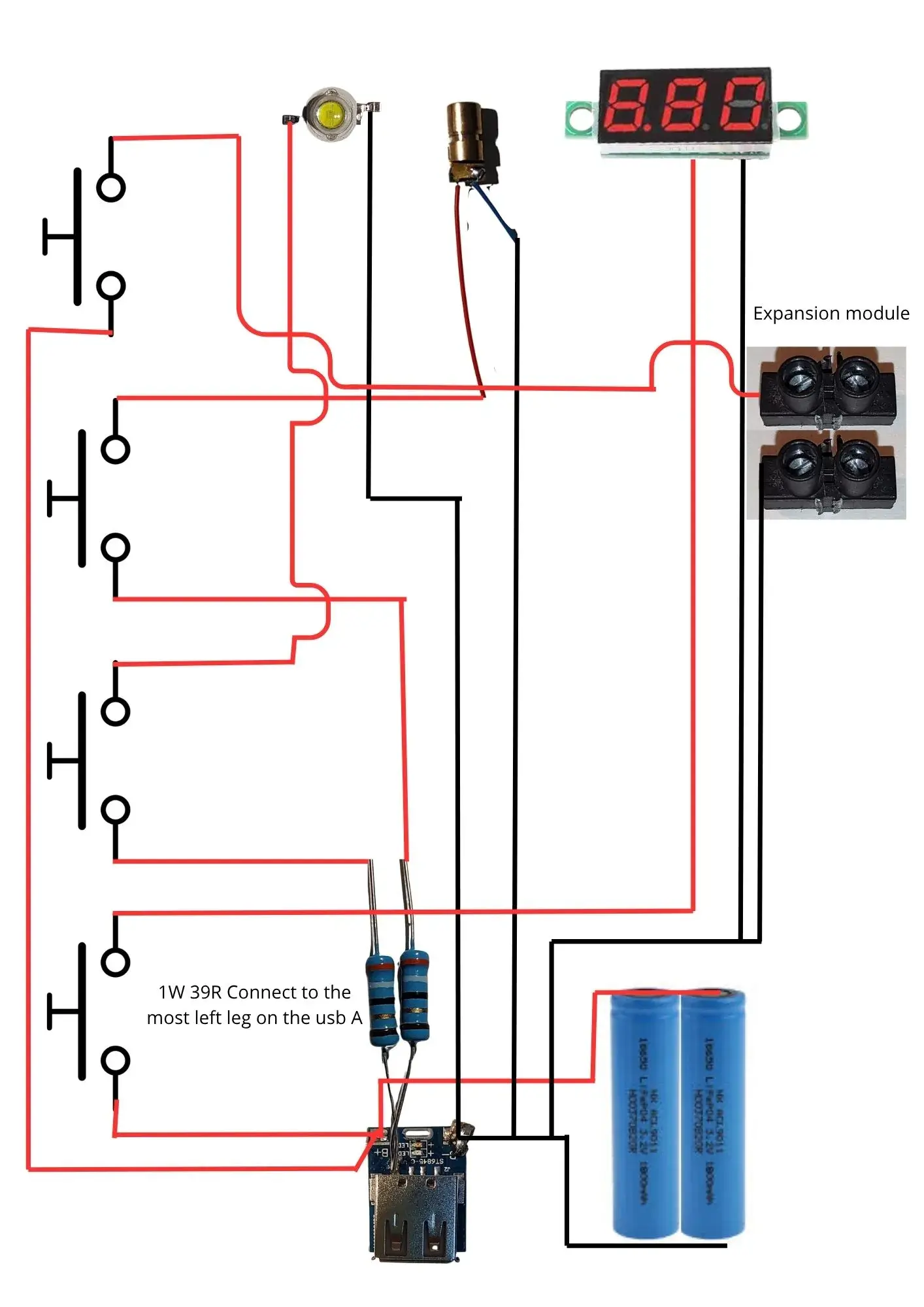

1W 39R Resistor
https://www.laskakit.cz/tlacitko-6x6x8mm/
https://www.laskakit.cz/tlacitko-12x12x7-3mm-s-knoflikem/?variantId=5051
https://www.laskakit.cz/mikrospinac-tc-1212t-12x12x7-3mm/

Modular Electromagnetic Physics Explorer

0.2mm layer, 2 walls, 15% infill
