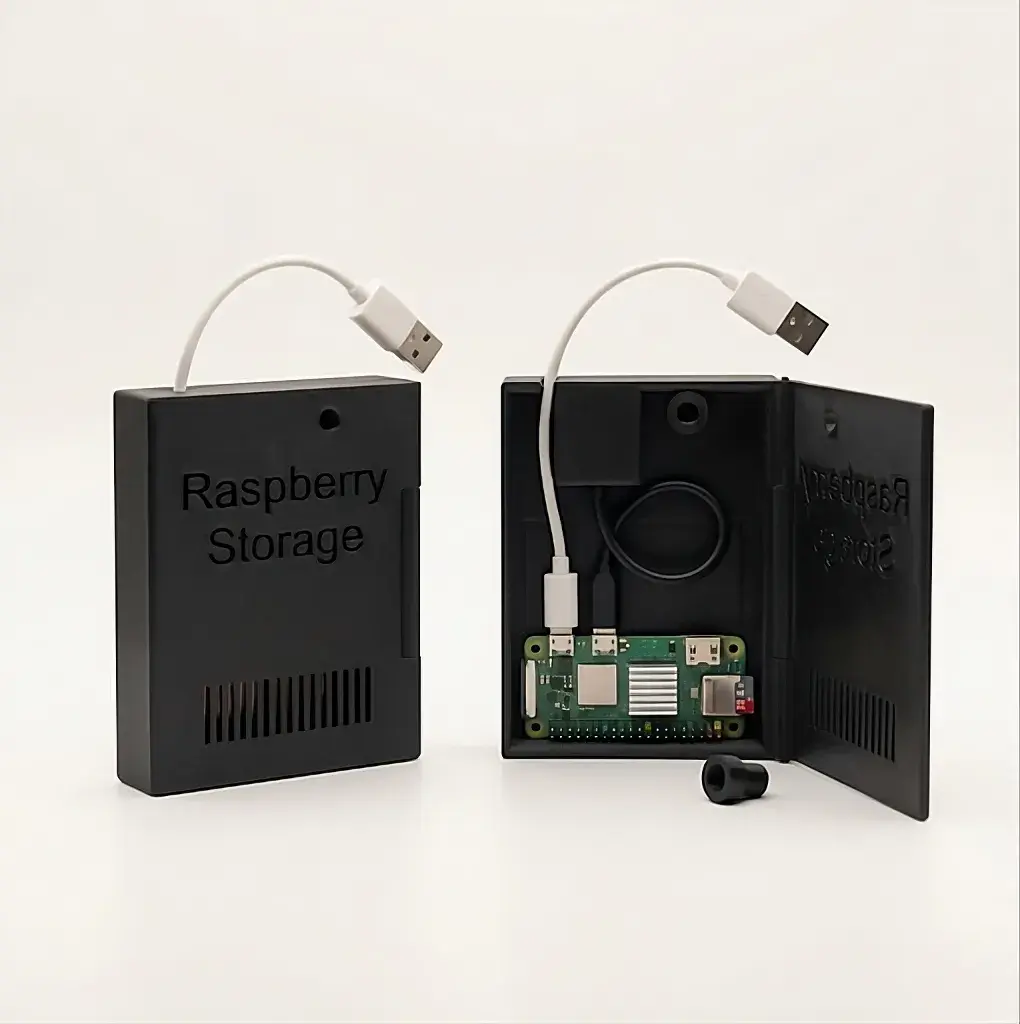

The design features a dedicated slot for an OTG adapter and uses clever, tool-less assembly.

🚀 Key Features:

• Easy Assembly: No extra hardware required.

• Hinge: Uses a small piece of 1.75mm filament as the pin.

• Locking: Closes with a 3D-printed M7 screw (1mm pitch). You can also use a standard metal M7 (1.0 pitch) screw.

• Hardware Integration: Specifically designed for the UGREEN Micro USB OTG Adapter.

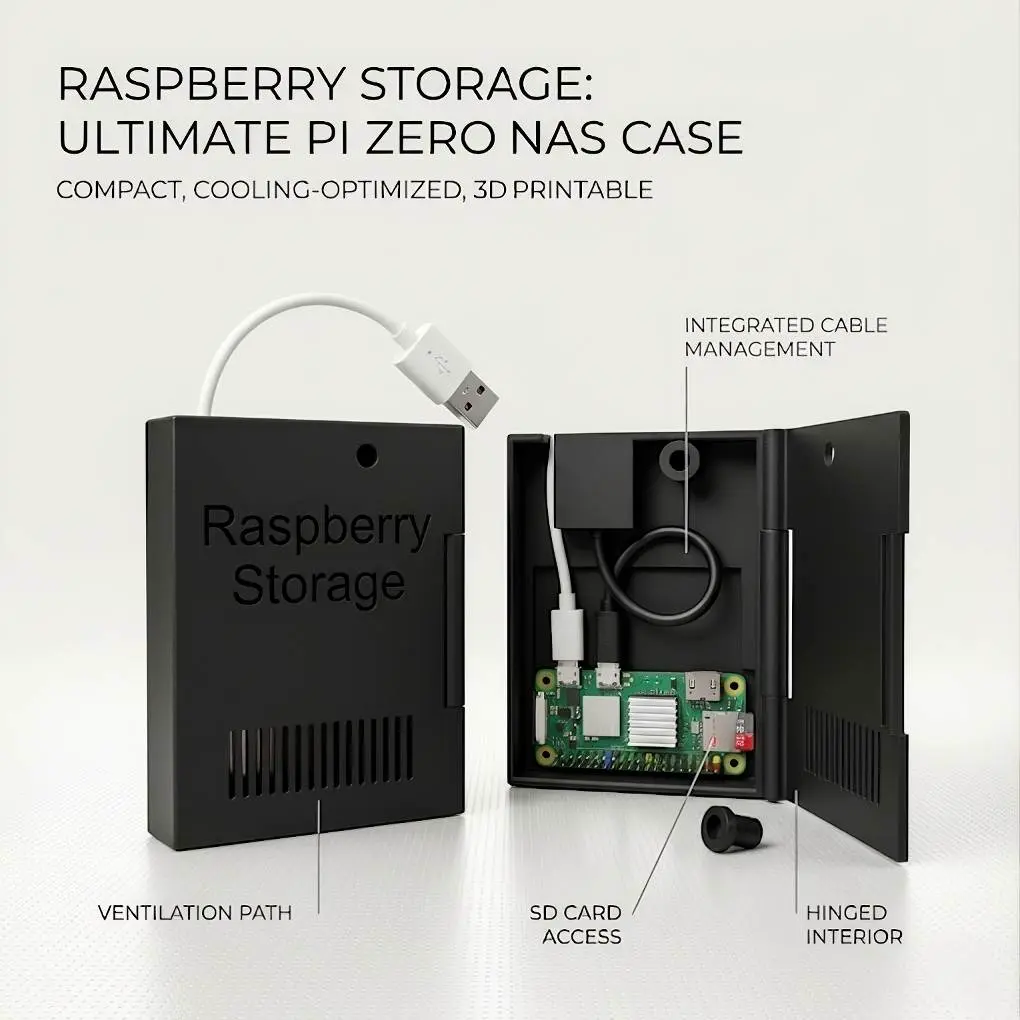

• Cooling: Built-in ventilation slots to keep the Pi Zero 2 W cool during 24/7 operation.

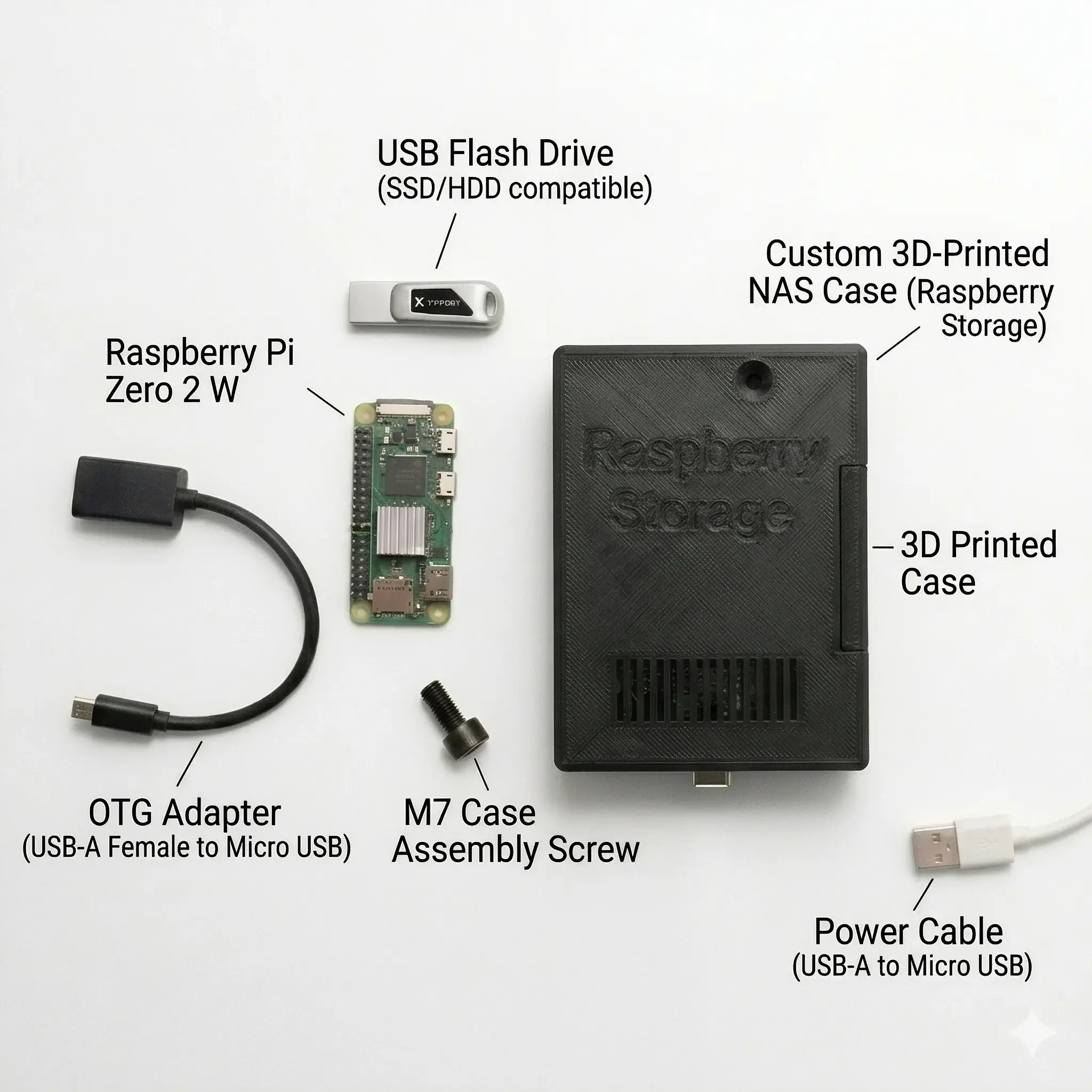

🛠️ What You’ll Need:

1. Raspberry Pi Zero 2 W

2.Micro SD Card

3. UGREEN Micro USB OTG Adapter - https://www.amazon.com/UGREEN-Adapter-Samsung-Controller-Smartphone/dp/B00LN3LQKQ?th=1

4. Any USB Drive (Flash drive or External HDD/SSD)

5. A short piece of 1.75mm Filament (for the hinge)

⚙️ Print Settings:

• Resolution: 0.2 mm (Crucial for the M7 thread accuracy)

• Supports: YES (Required for internal overhangs and text details)

• Infill: 15 - 20%

• Filament: PLA or PETG
