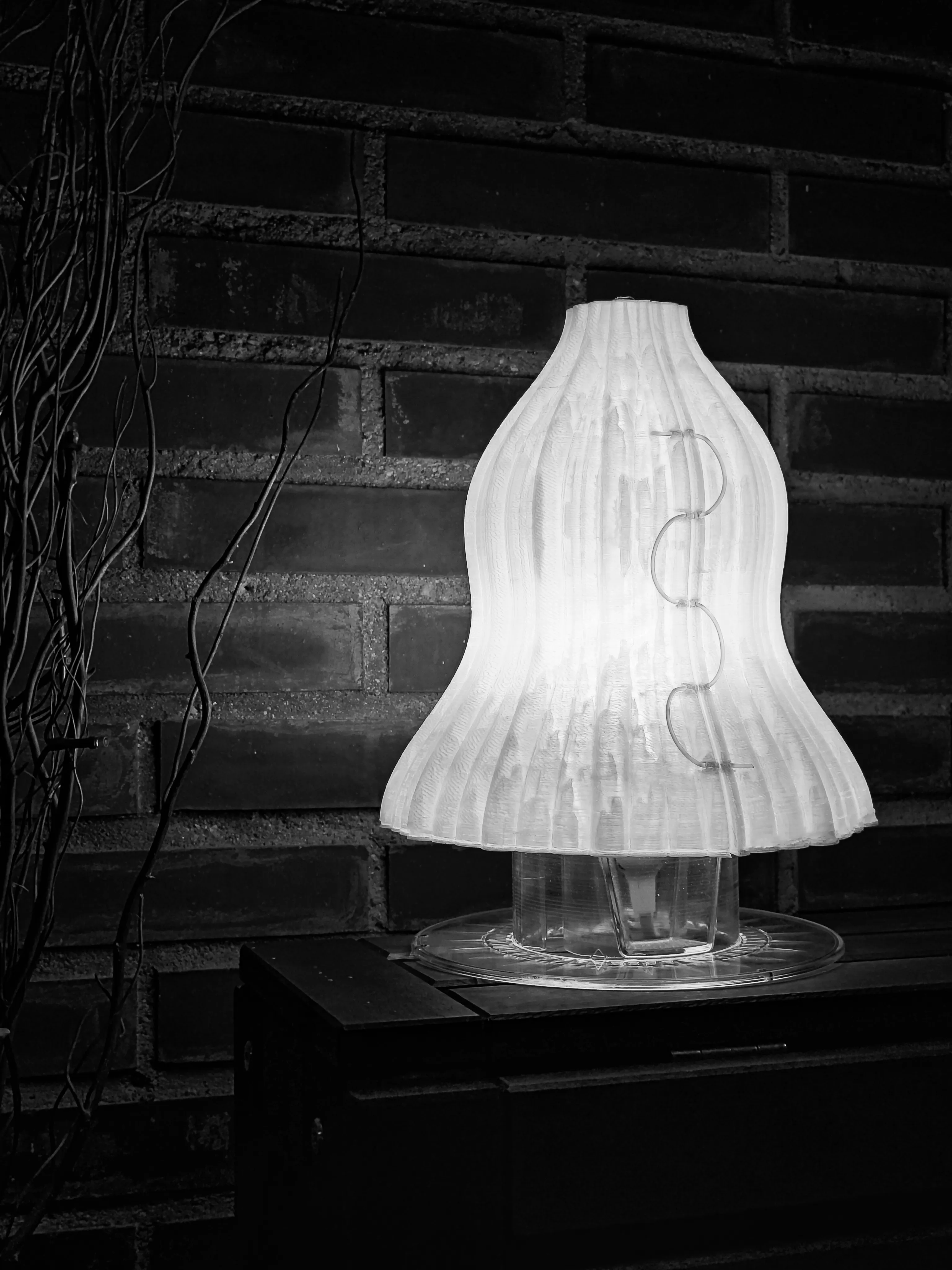

SP01L continues the line of 3D printable lamps that give new life to filament spools.

Those of us who print know what it's like to have spent spools lying around and not knowing what to do with them, plus they're hard to recycle. That's why I've created this design line that ingeniously plays with the spools to make the most of them.

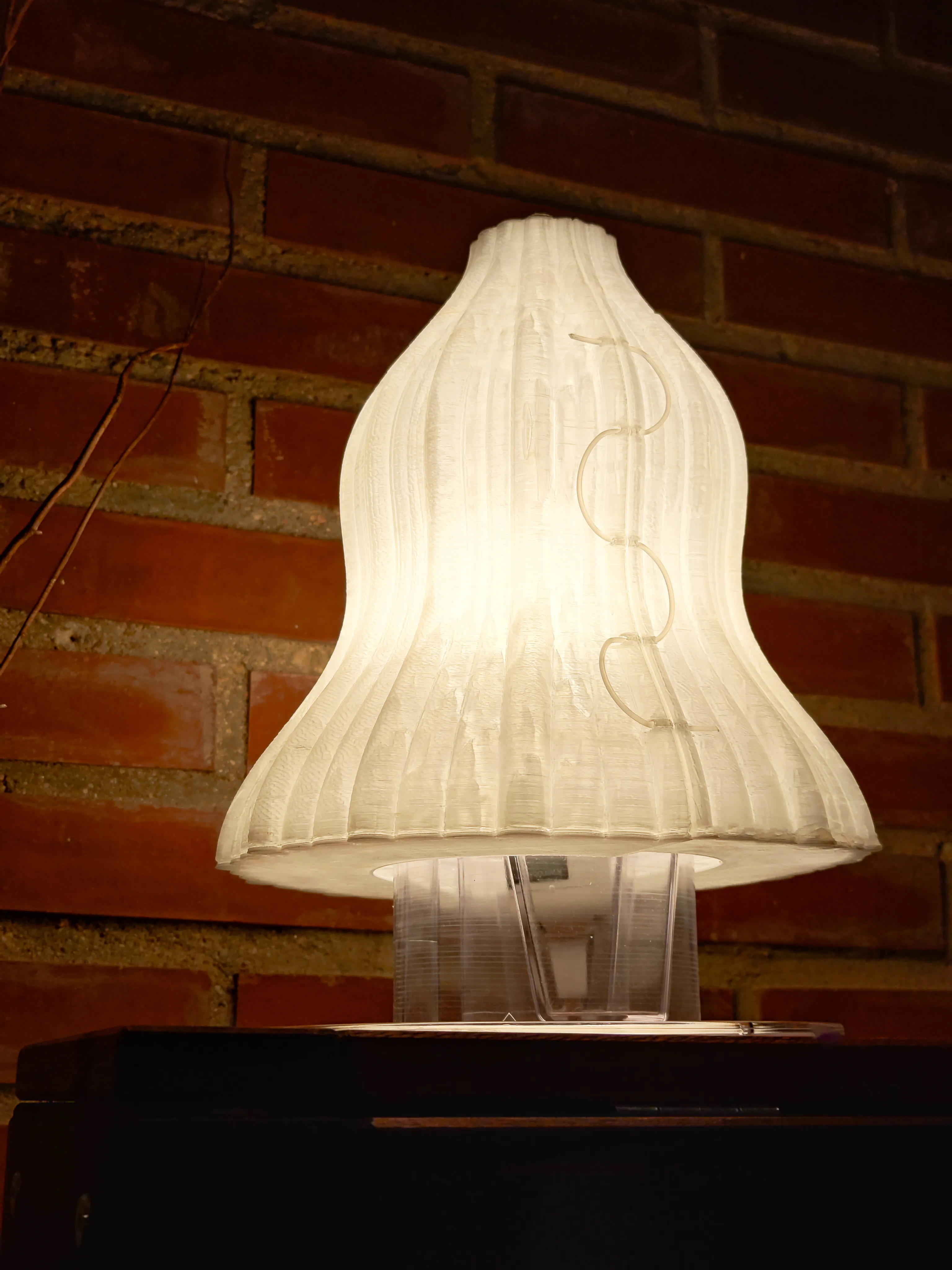

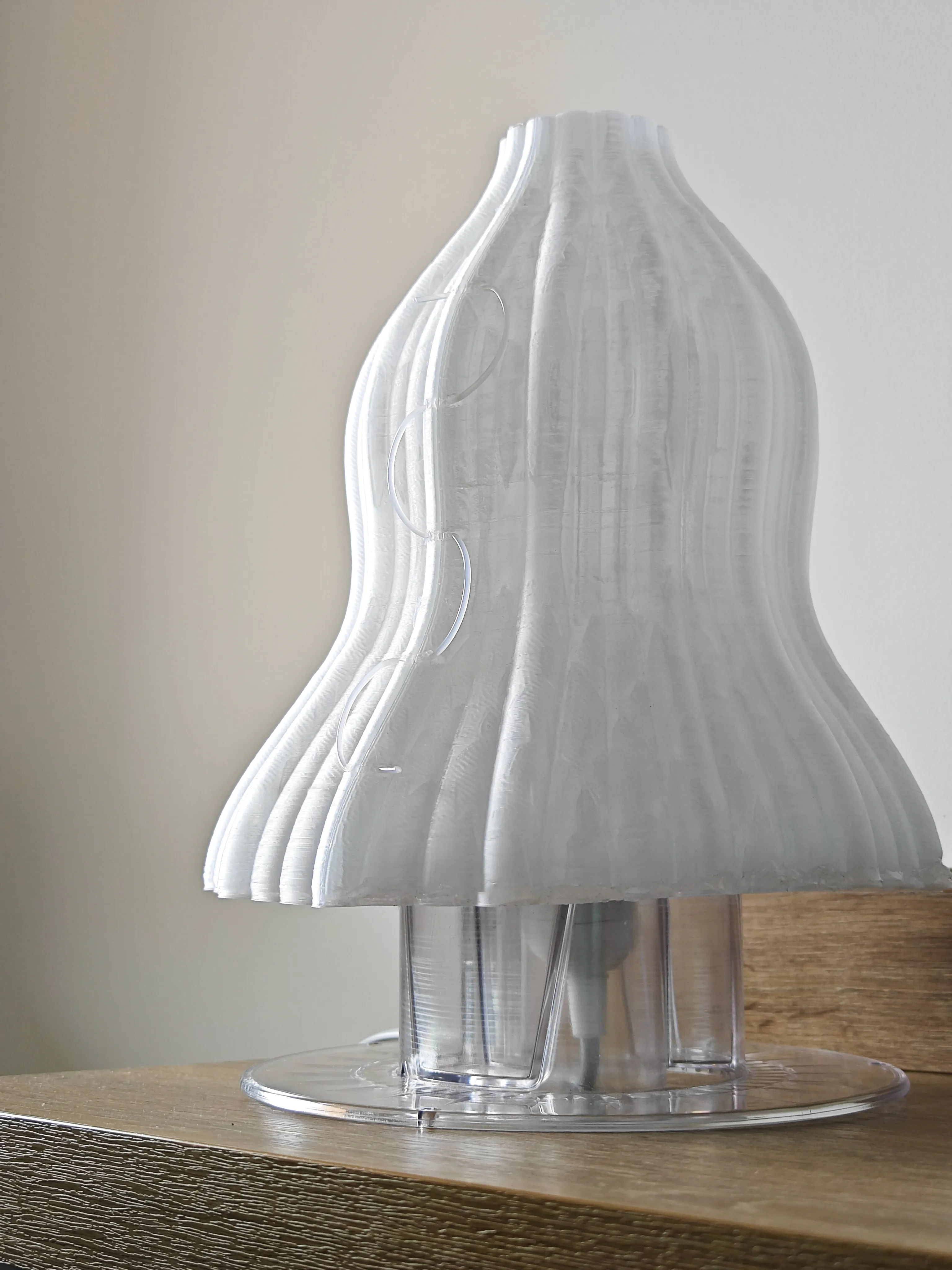

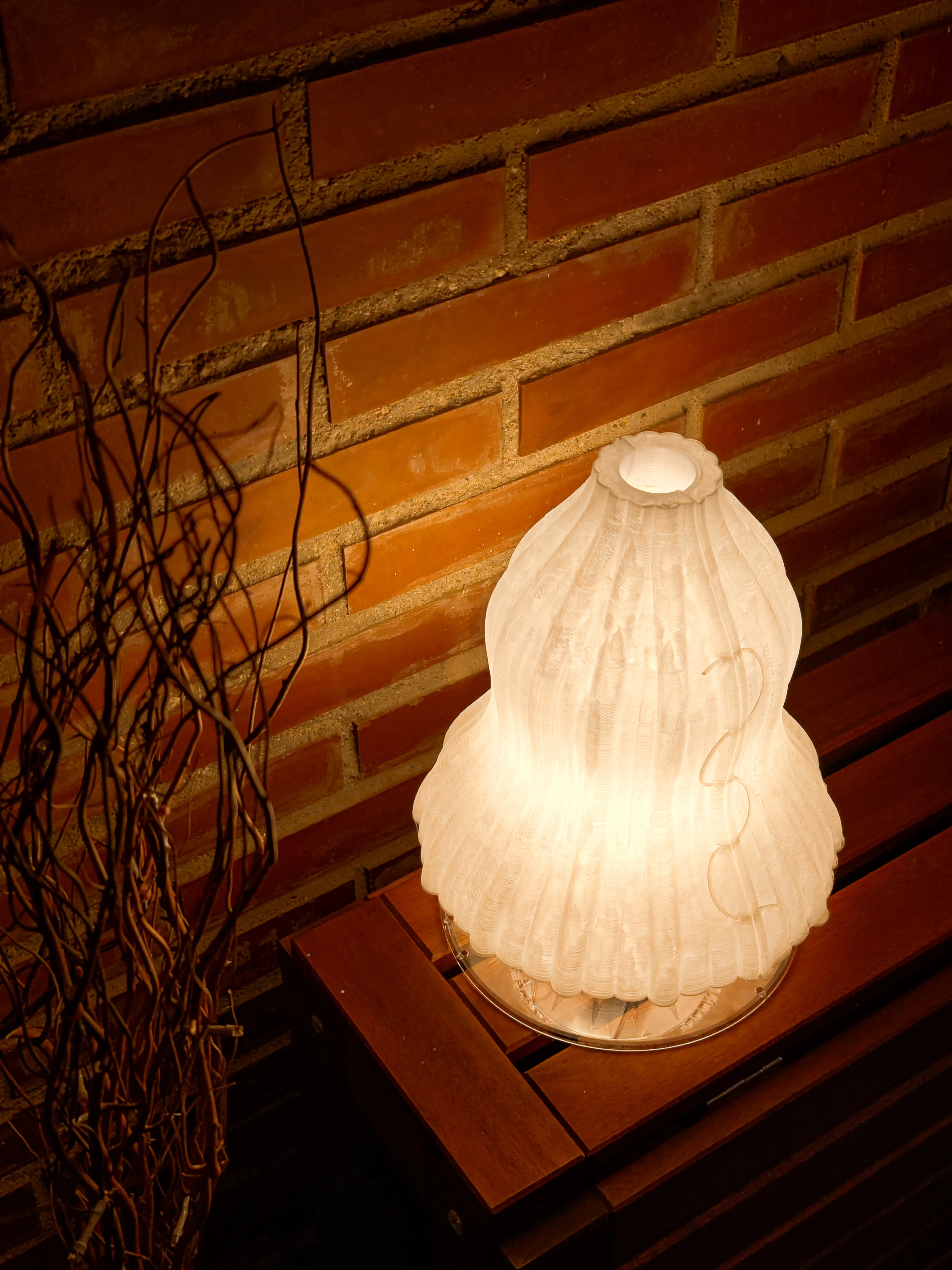

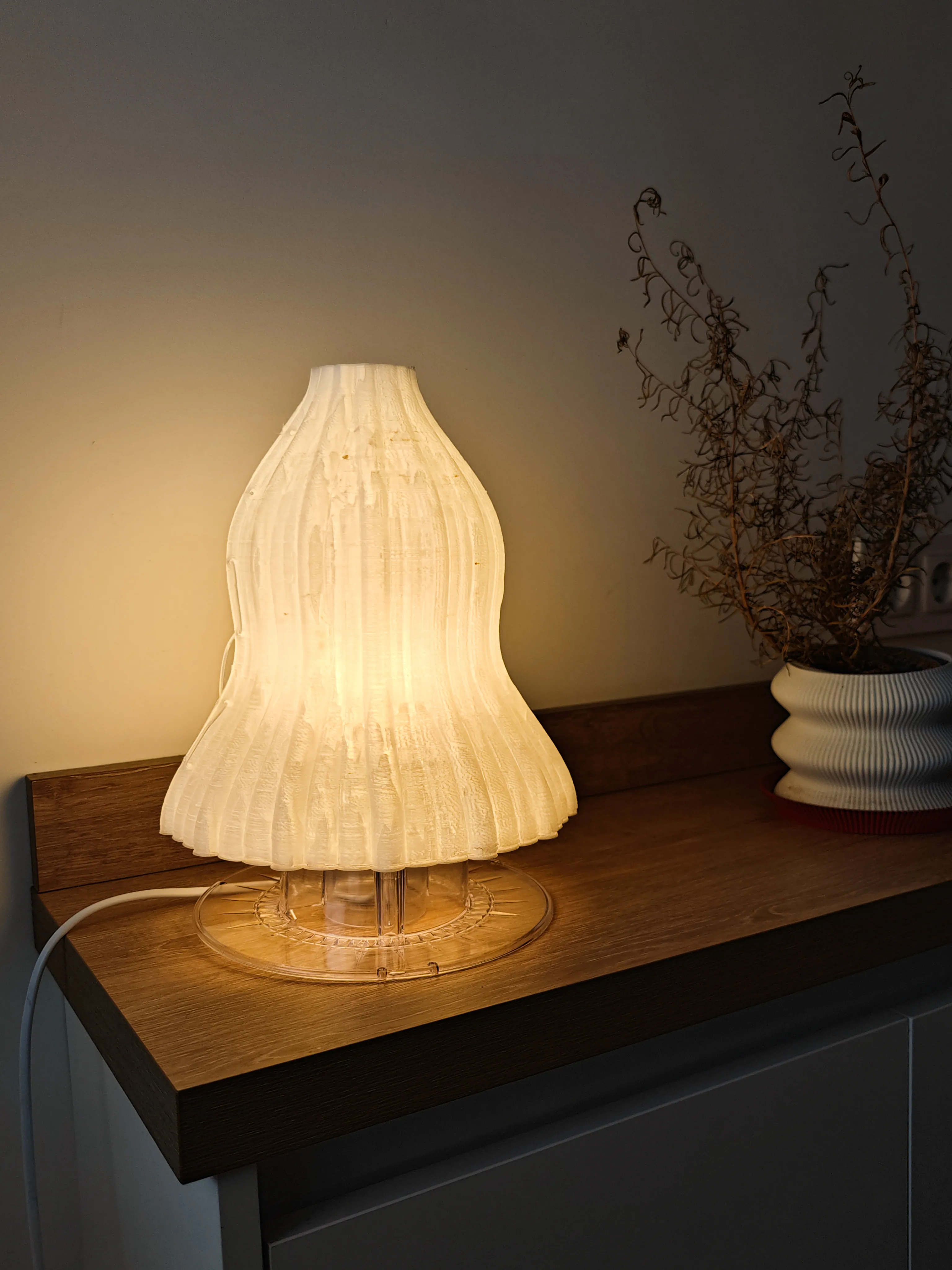

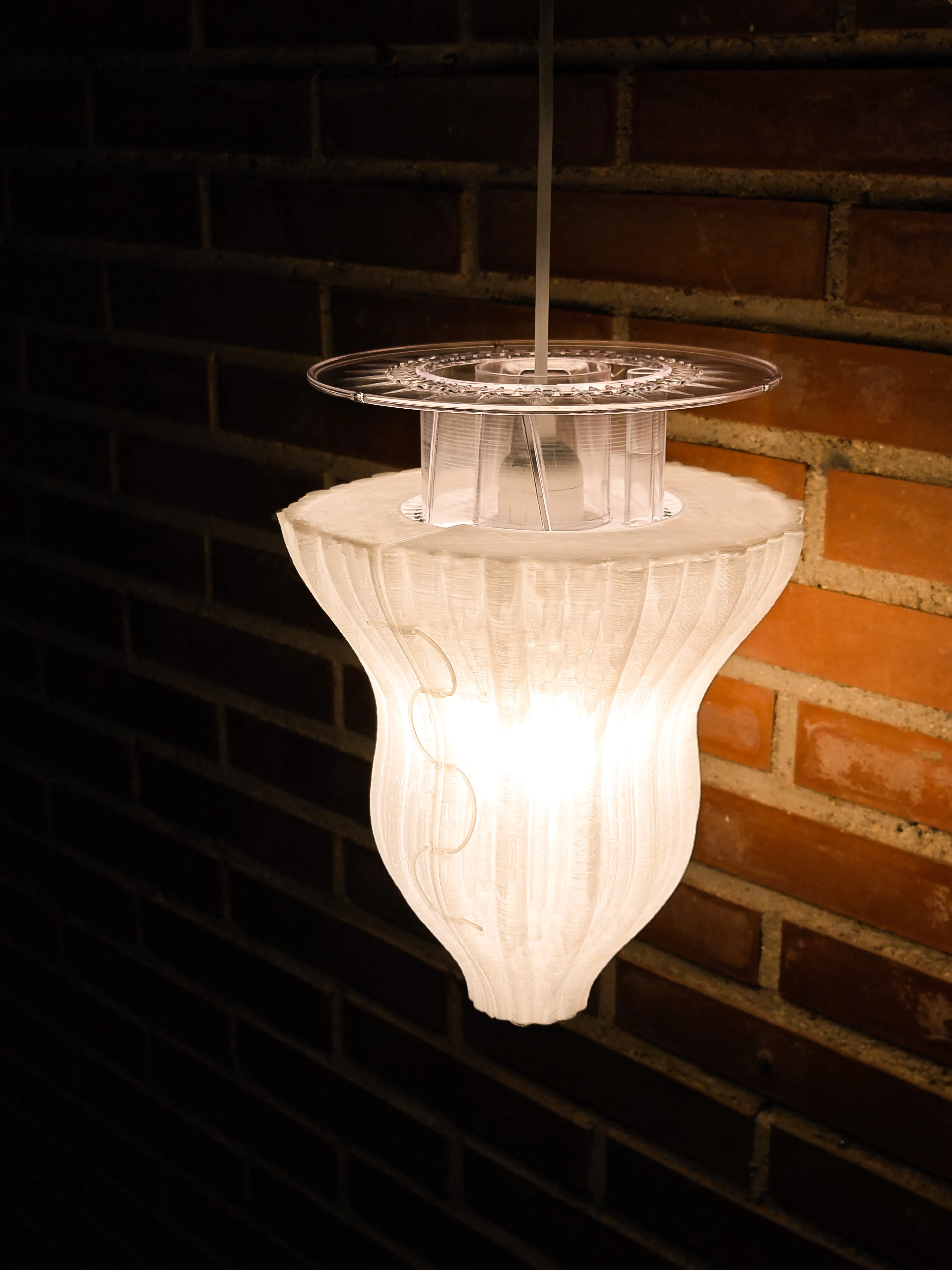

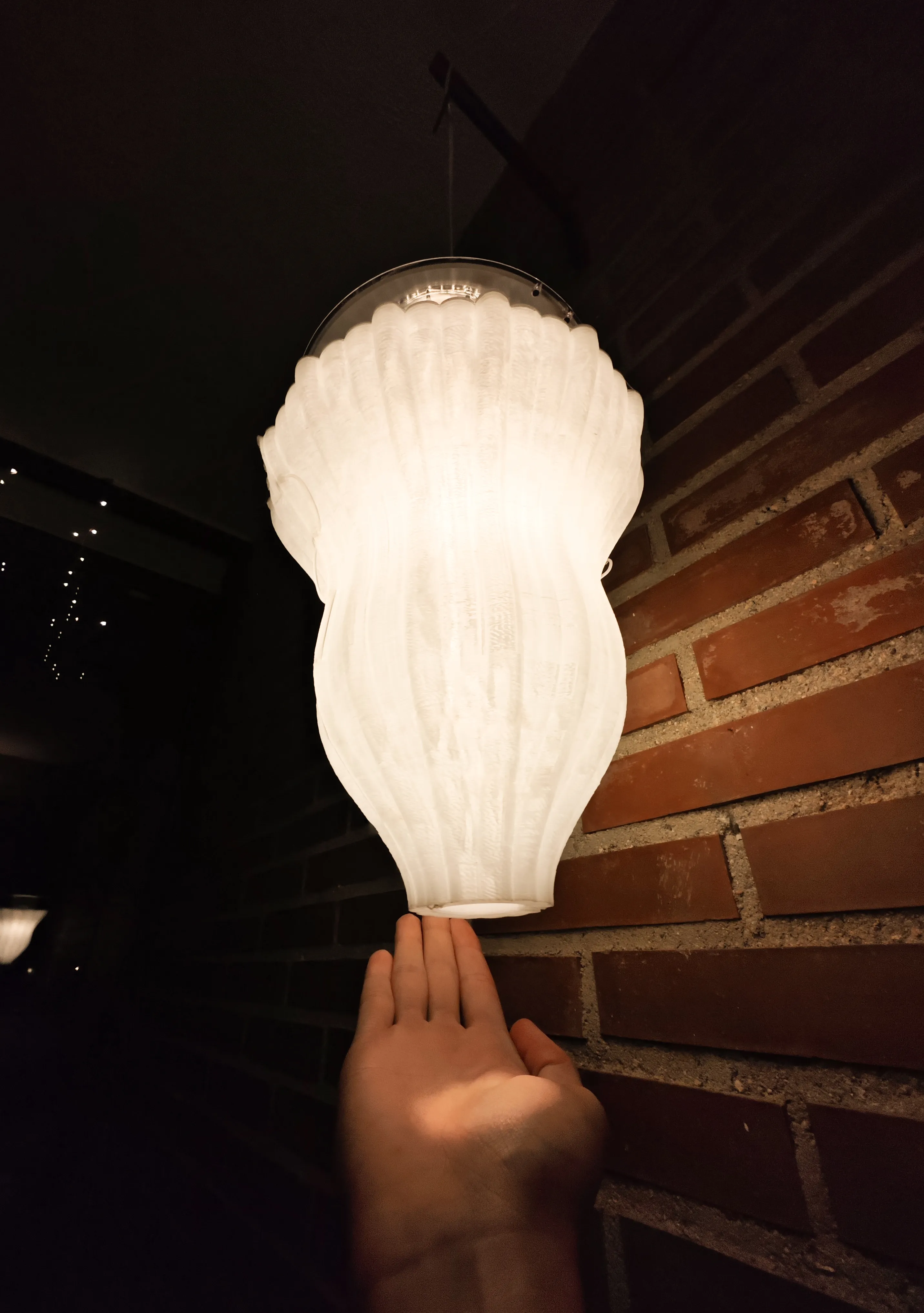

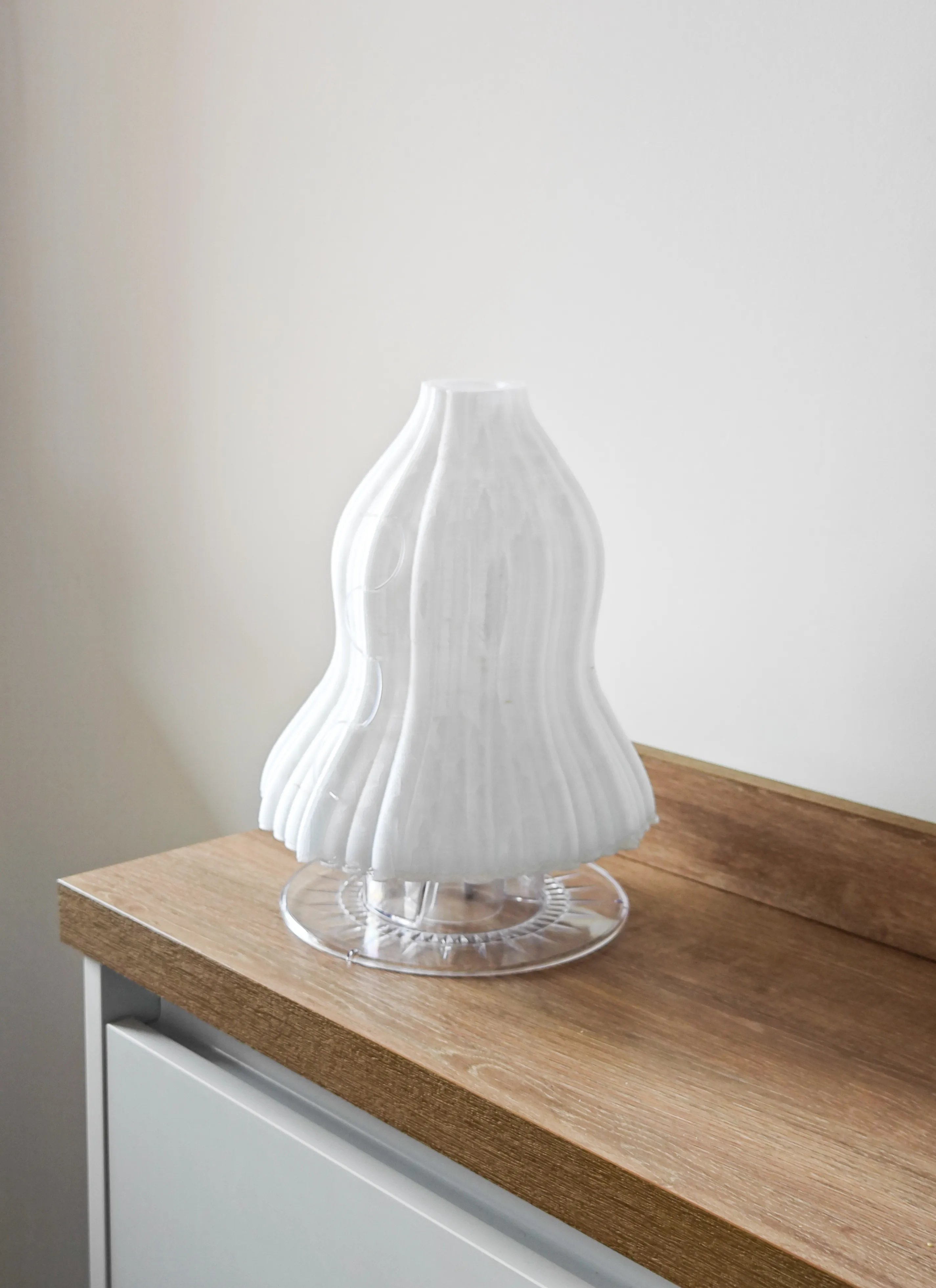

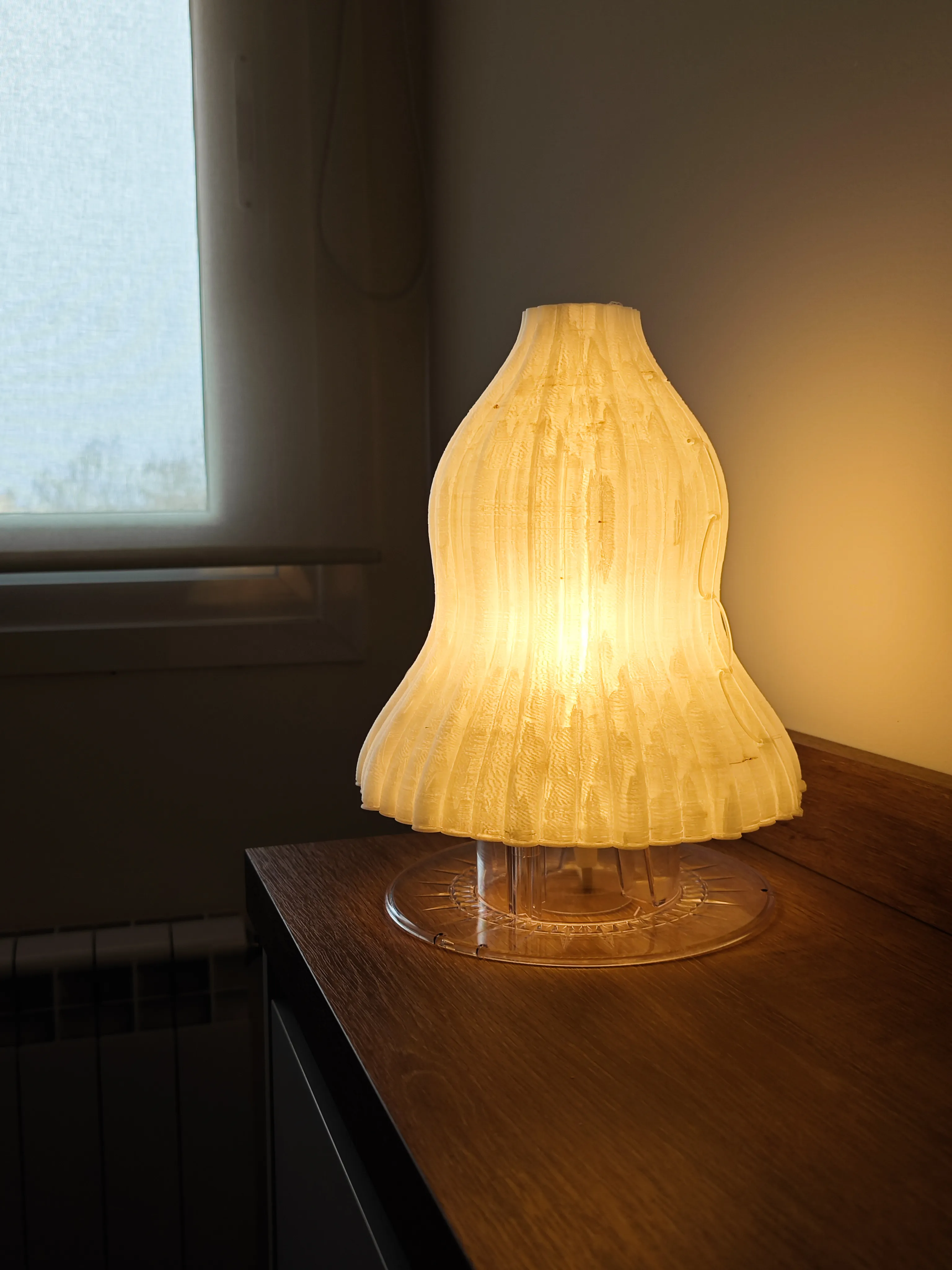

To assemble it you only have to print the same piece twice (SP01L.stl). These halves are attached to a spool and tied together with thread or you can even use leftover filament.

You can play with the combination of the different types and colours of spools you have: dark or transparent, plastic or cardboard..... I used a transparent spool from Sakata 3D.

The outer diameter of the lamp is 22,5 cm, I have left a margin so that you can assemble it with different brands of 1kg spools. You can even scale the design so that you can assemble a smaller version with smaller spools!

For further clarifications you can check out my Instagram where I will be posting more information about the project:

https://www.instagram.com/creaserra

3D printing parameters:

For the model (SP01L.stl) you should print using transparent PLA (I used 3DJake) in the optimal orientation (large base down) and using the following parameters:

Filling: 0%

No support

No adhesion

Layer height: 0.3 mm

Top layers 4

Bottom layers 4

Wall line count 3

Nozzle size: 0.4 mm

Line width: 0.4 mm

Nozzle temperature: 210ºC

Shrink: Yes
