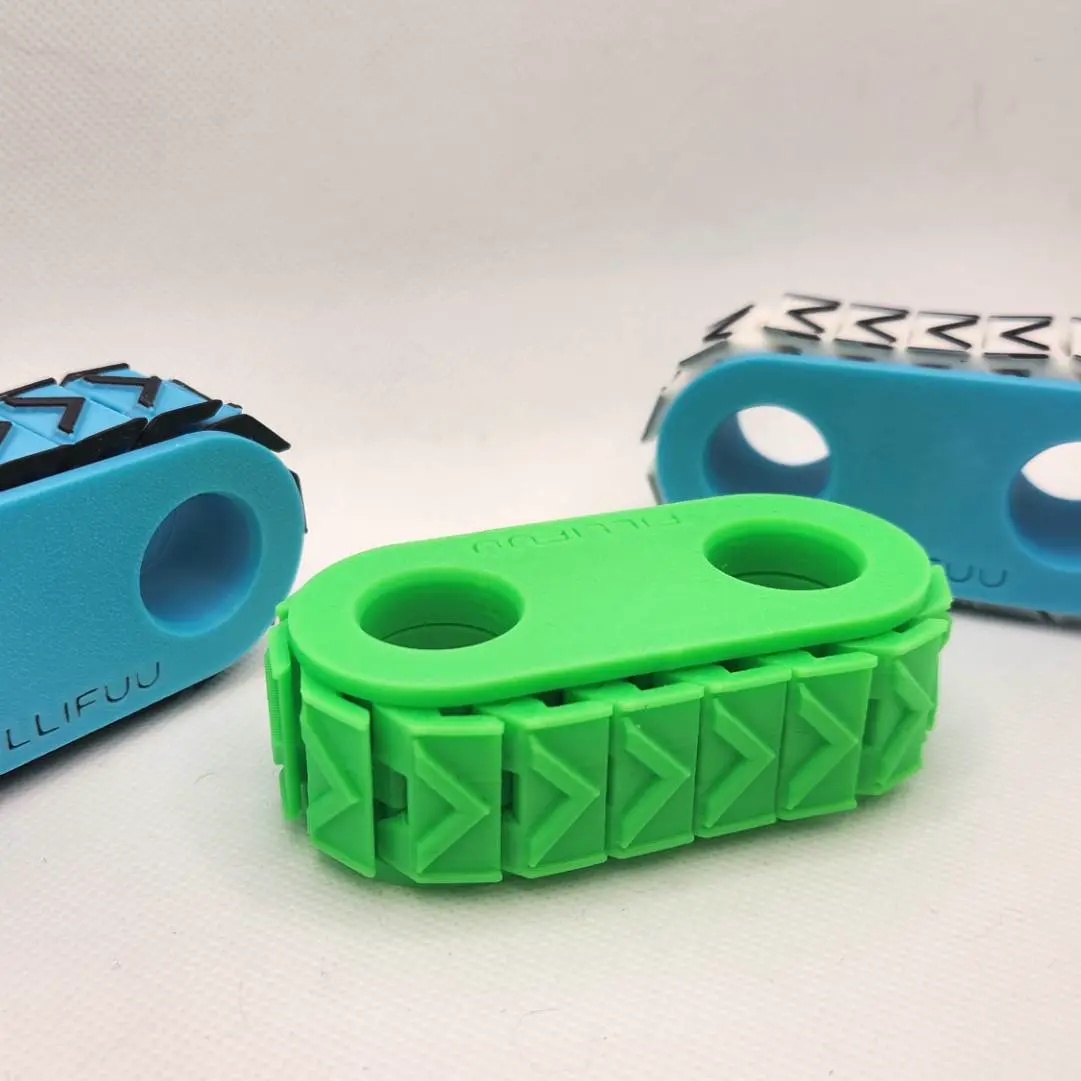

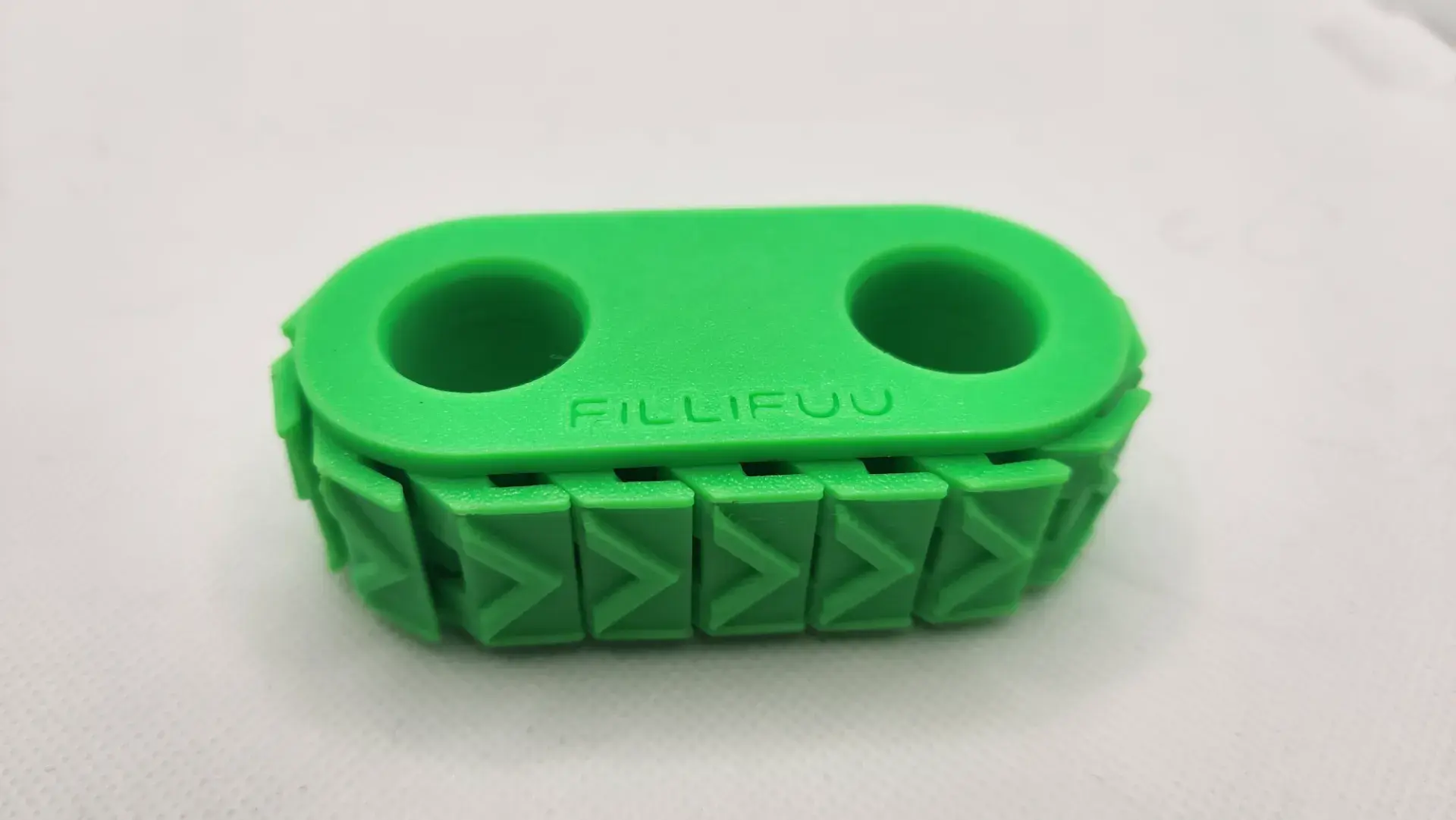

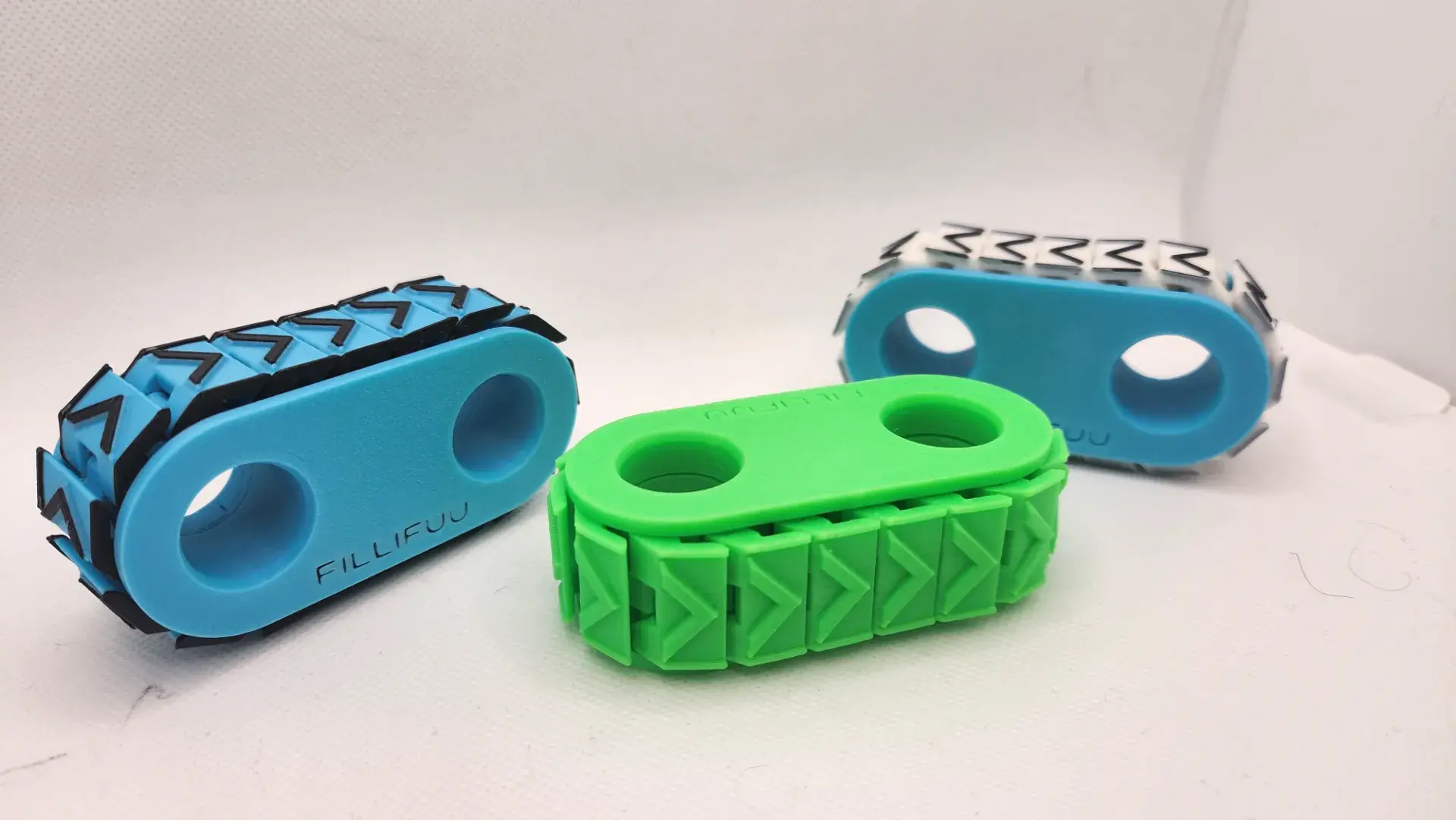

Tread clicker fidget, taking inspiration from some of the best creations I have seen and creating a satisfying, easy to build toy. Requires no glue and can easily be assembled in under 1 minute. The track clicks either direction and is easy to spin, has been revised multiple times and tested for over a week.

I printed this using elegoo pla, using a few supports, due to the spring required for the build its recommended against using silk as has only been tested using basic pla filaments so please avoid silk & PLA plus as they tend to either be more brittle and can slightly over extrude.

To print you require 2x cogs & 1x of each other part

Recommend printing with regular 0.42mm thick walls at 0.2mm layer height

How to build -

Step 1 -

Remove all supports.

Step 2 -

Gently flex the tracks being careful not to damage the hinge, so the track is able to freely rotate.

Step 3 -

Insert the spring as per the orientation in the above photograph (you may leave the spring out if you intend to use without the clicker function.

Step 4 -

Place the wheels inside the track as shown.

Step 5 -

Lower the wheels and track simultaneously as shown above, gently moving the spring aside as you lower into the notches on the wheel as shown.

Step 6 -

Align the base and top with he orientation shown above and then gently click the two pieces together.

Step 7 -

Done, rotate the track a few times ensuring the clicker function works - if the track feels stiff, rotate a few times further until the device rotates easily and enjoy.

Tread Clicker Fidget

0.2mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 15% infill
